Systèmes d'éclairage
Fortyeight
Filtres
Filtres
Couleur
Dimension
Version
CCT
CRI
Optique
Type de optique
Puissance installée
W
W
Flux appareil
lm
lm
Alimentation

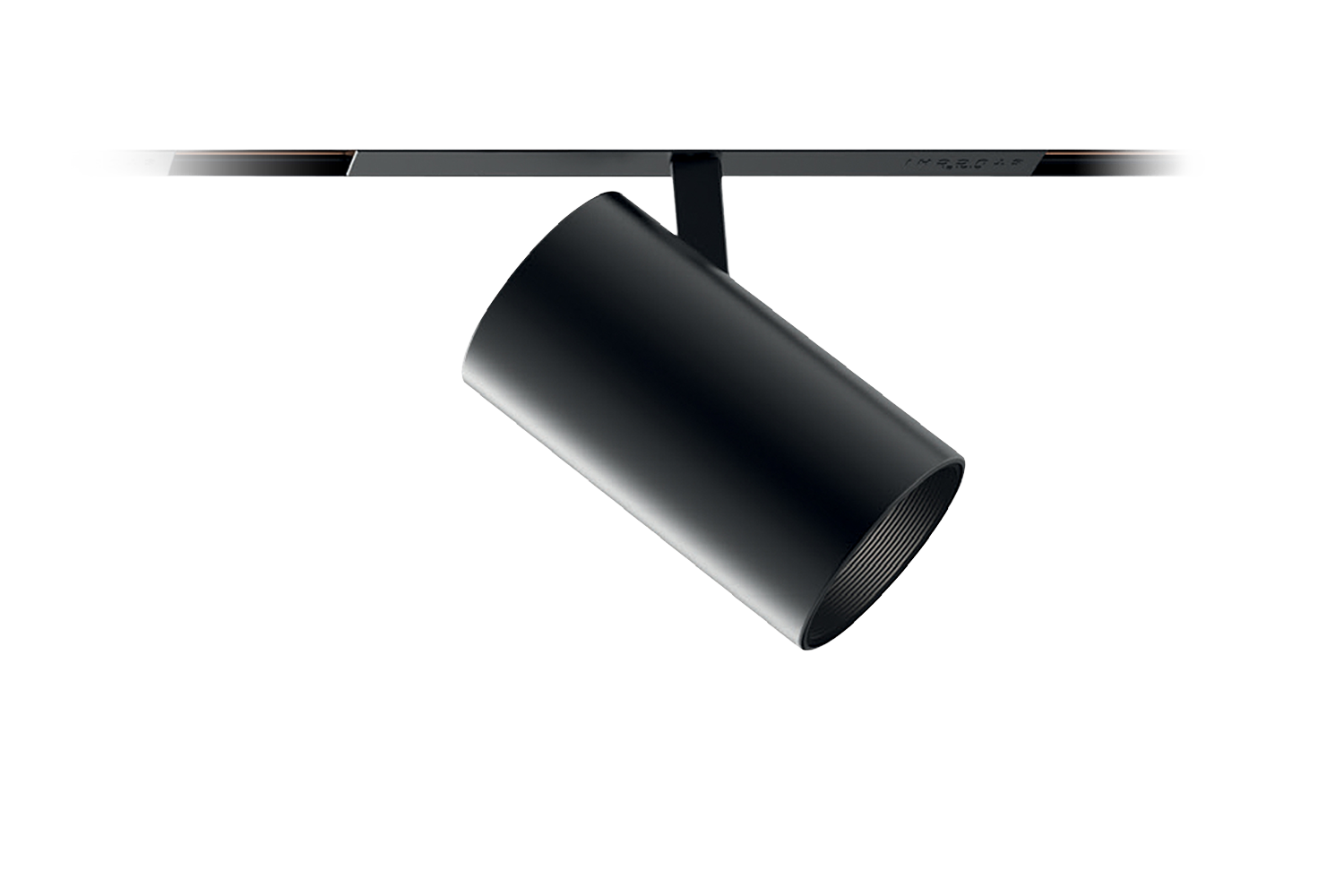

Fortyeight Label 6 - Bras court
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T9046EL | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc |  |
Overview |
| 1T9047EL | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9048EL | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9049EL | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc |  |
Overview |
| 1T9050EL | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9051EL | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9046DA | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9047DA | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9048DA | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9049DA | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9050DA | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9051DA | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9052EL | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9053EL | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9054EL | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9055EL | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9056EL | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9057EL | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9052DA | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9053DA | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9054DA | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9055DA | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9056DA | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9057DA | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9058EL | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9059EL | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9060EL | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9061EL | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9062EL | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9063EL | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9058DA | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9059DA | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9060DA | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9061DA | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9062DA | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9063DA | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
26

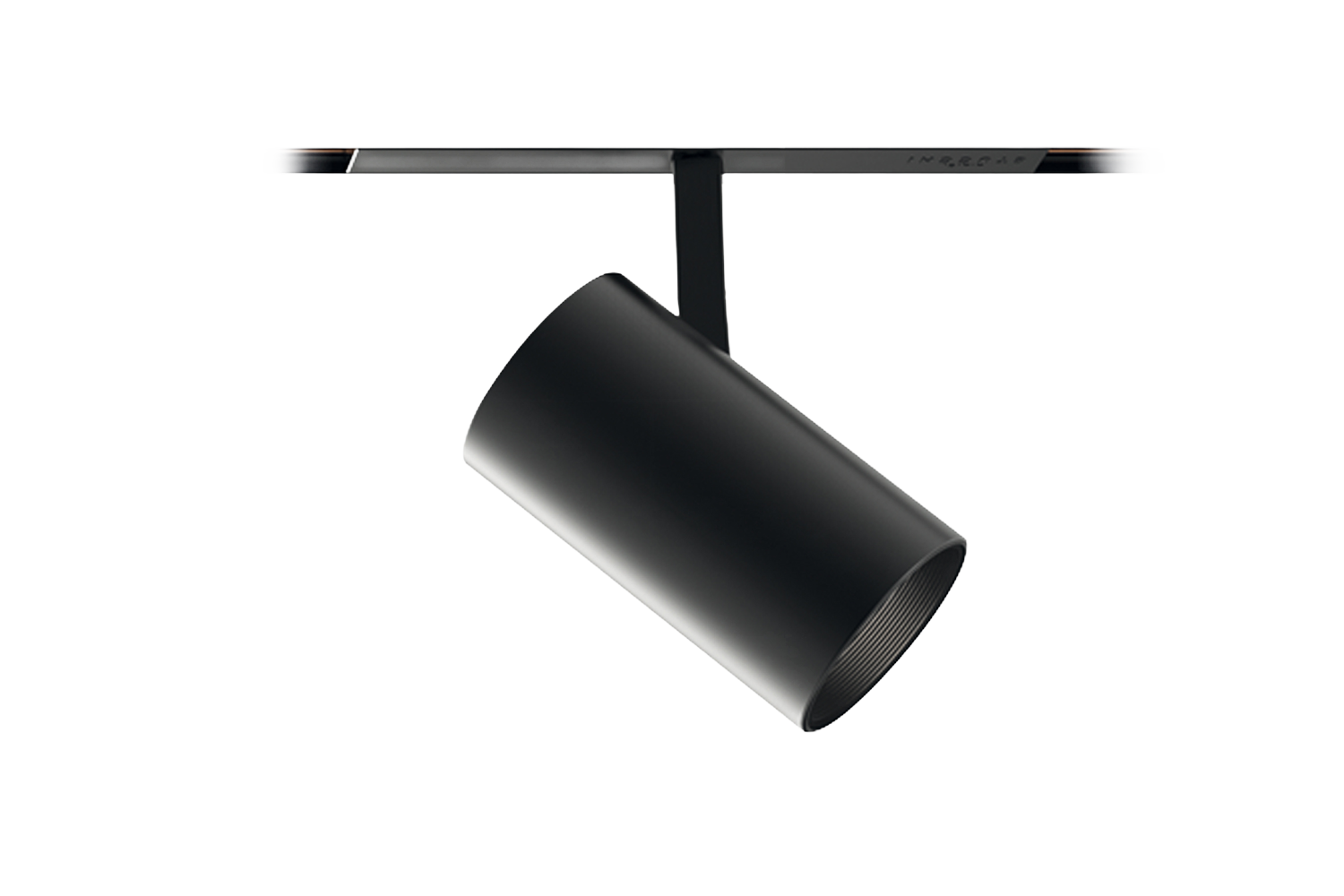

Fortyeight Label 6 - Bras long
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T9064EL | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9065EL | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9066EL | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9067EL | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9068EL | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9069EL | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9064DA | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9065DA | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9066DA | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9067DA | 2700K 90 | SP 14° | 16,2W 1244lm | 48Vdc | |
Overview |
| 1T9068DA | 3000K 90 | SP 14° | 16,2W 1314lm | 48Vdc | |
Overview |
| 1T9069DA | 4000K 90 | SP 14° | 16,2W 1403lm | 48Vdc | |
Overview |
| 1T9070EL | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9071EL | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9072EL | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9073EL | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9074EL | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9075EL | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9070DA | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9071DA | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9072DA | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9073DA | 2700K 90 | FL 26° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9074DA | 3000K 90 | FL 26° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9075DA | 4000K 90 | FL 26° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9076EL | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9077EL | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9078EL | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9079EL | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9080EL | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9081EL | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9076DA | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9077DA | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9078DA | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
| 1T9079DA | 2700K 90 | MWFL 41° | 15W 1499lm | 48Vdc | |
Overview |
| 1T9080DA | 3000K 90 | MWFL 41° | 15W 1597lm | 48Vdc | |
Overview |
| 1T9081DA | 4000K 90 | MWFL 41° | 15W 1727lm | 48Vdc | |
Overview |
26
