Systèmes d'éclairage
Fortyeight
Filtres
Filtres
Couleur
Dimension
Version
CCT
CRI
Optique
Type de optique
Flux appareil
lm
lm
Alimentation

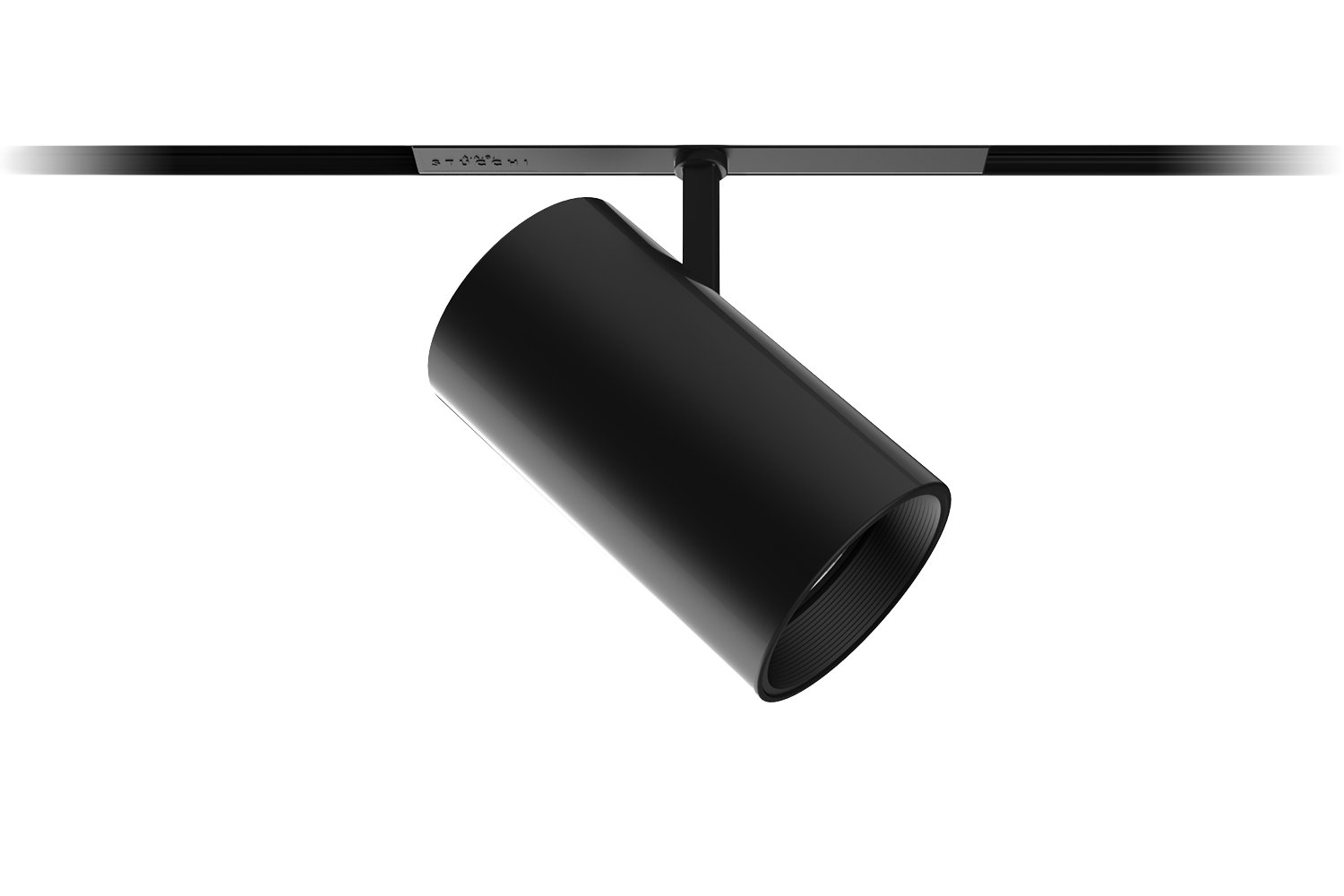

Fortyeight Label 7 - Bras court
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T8067EL | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc |  |
Overview |
| 1T8068EL | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8069EL | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8070EL | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc |  |
Overview |
| 1T8071EL | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8072EL | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8067DA | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8068DA | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8069DA | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8070DA | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8071DA | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8072DA | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8073EL | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8074EL | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8075EL | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8076EL | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8077EL | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8078EL | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8073DA | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8074DA | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8075DA | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8076DA | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8077DA | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8078DA | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8079EL | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8080EL | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8081EL | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8082EL | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8083EL | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8084EL | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8079DA | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8080DA | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8081DA | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8082DA | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8083DA | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8084DA | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
26

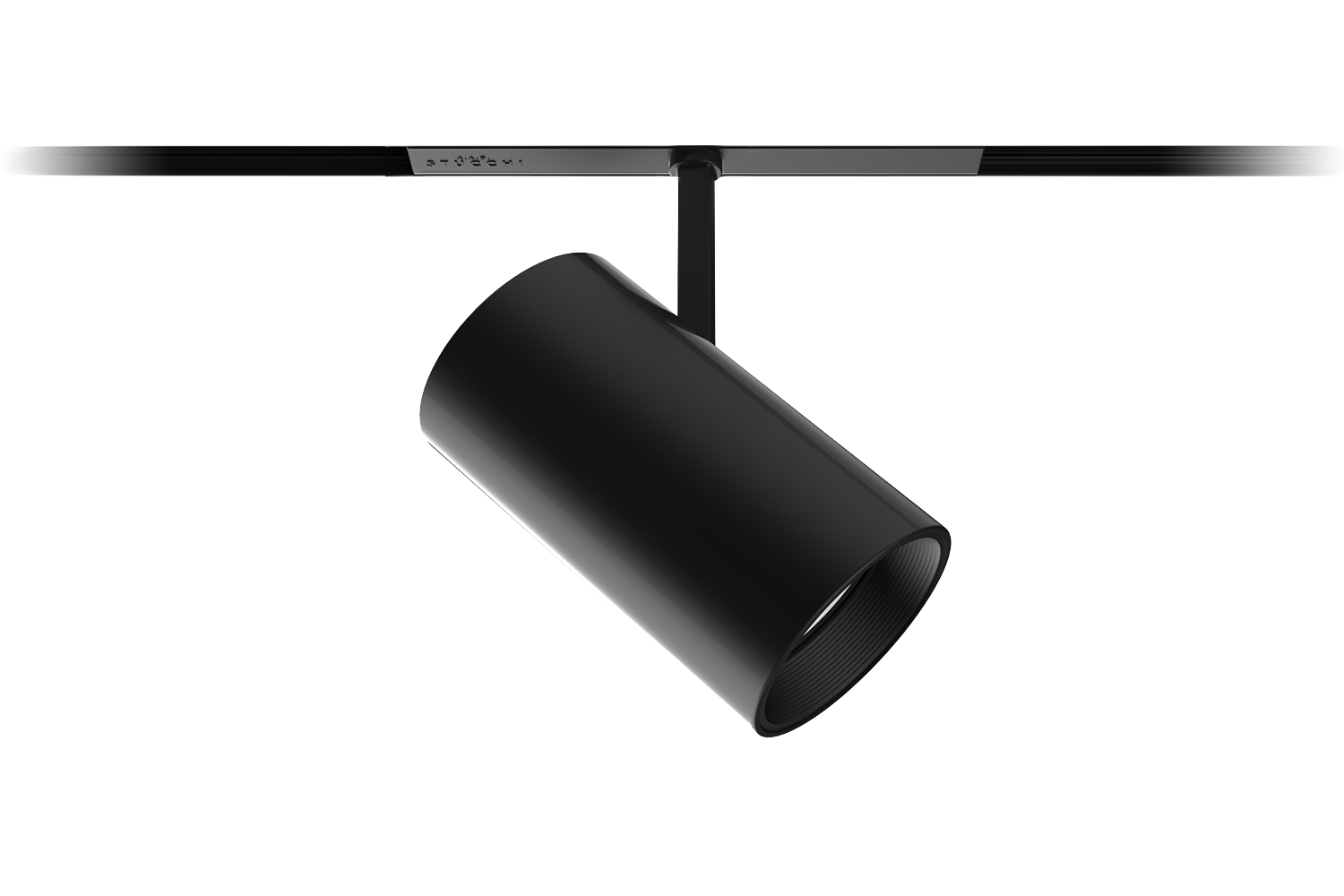

Fortyeight Label 7 - Bras long
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T8118EL | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8119EL | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8120EL | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8121EL | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8122EL | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8123EL | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8118DA | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8119DA | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8120DA | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8121DA | 2700K 90 | SP 17° | 22,9W 2250lm | 48Vdc | |
Overview |
| 1T8122DA | 3000K 90 | SP 17° | 22,9W 2397lm | 48Vdc | |
Overview |
| 1T8123DA | 4000K 90 | SP 17° | 22,9W 2542lm | 48Vdc | |
Overview |
| 1T8124EL | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8125EL | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8126EL | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8127EL | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8128EL | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8129EL | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8124DA | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8125DA | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8126DA | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8127DA | 2700K 90 | FL 26° | 22,9W 2199lm | 48Vdc | |
Overview |
| 1T8128DA | 3000K 90 | FL 26° | 22,9W 2342lm | 48Vdc | |
Overview |
| 1T8129DA | 4000K 90 | FL 26° | 22,9W 2484lm | 48Vdc | |
Overview |
| 1T8130EL | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8131EL | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8132EL | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8133EL | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8134EL | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8135EL | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8130DA | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8131DA | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8132DA | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
| 1T8133DA | 2700K 90 | MWFL 41° | 22,9W 2099lm | 48Vdc | |
Overview |
| 1T8134DA | 3000K 90 | MWFL 41° | 22,9W 2236lm | 48Vdc | |
Overview |
| 1T8135DA | 4000K 90 | MWFL 41° | 22,9W 2371lm | 48Vdc | |
Overview |
26
