Luminaires encastrés dans le sol
Jedi Compact
Filtres
Filtres
Couleur
Dimension
Version
CCT
CRI
Optique
Type de optique
Puissance installée
W
W
Flux appareil
lm
lm
Alimentation
Contrôle

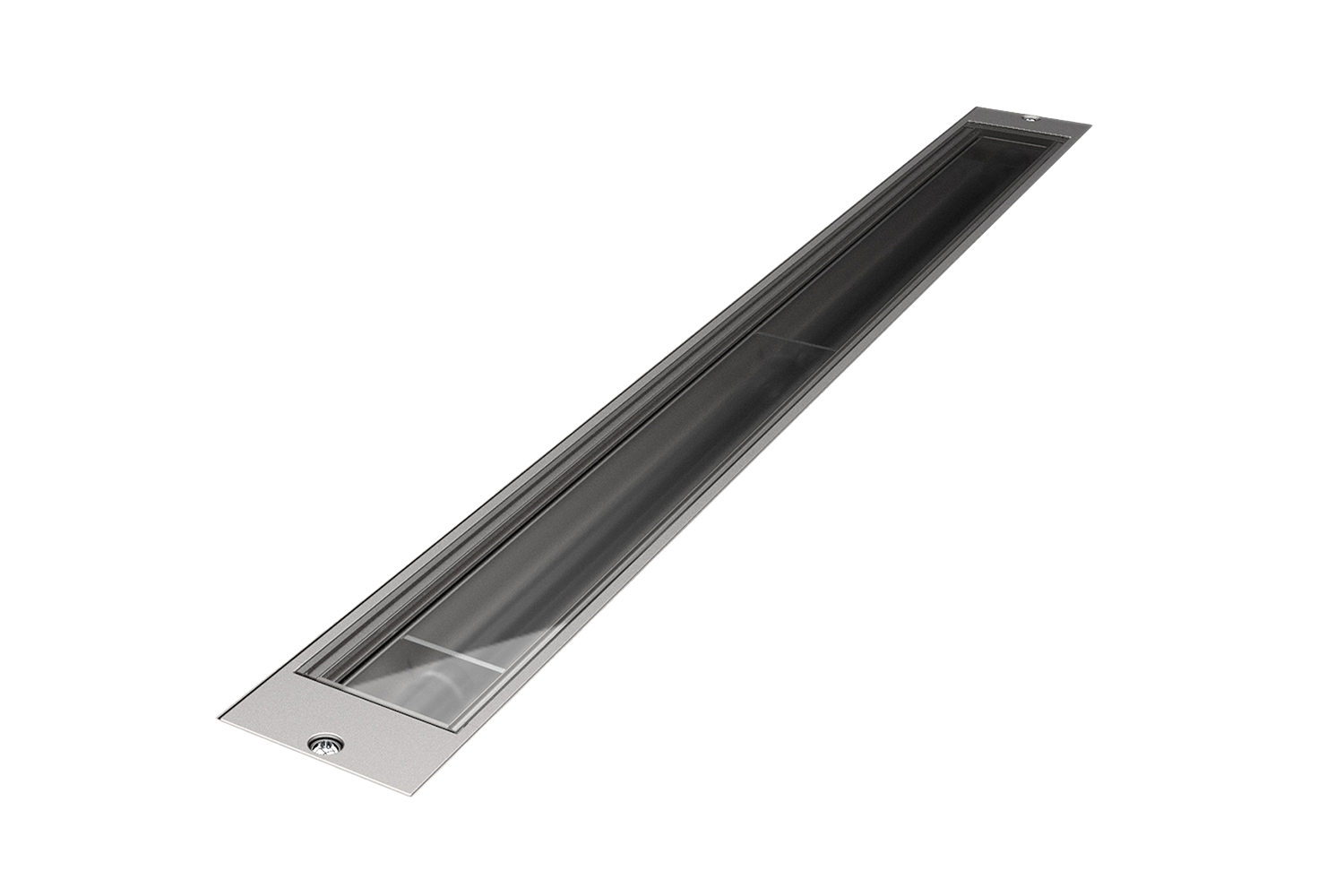

Jedi Compact Outdoor Encastrable
Driver distant - L. 1185mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3847 | 2700K 80 | SP 11° | 46W 4743lm | 500mA |  |
Overview |
| 1E3848 | 3000K 80 | SP 11° | 46W 5151lm | 500mA | |
Overview |
| 1E3849 | 3500K 80 | SP 11° | 46W 5310lm | 500mA | |
Overview |
| 1E3850 | 4000K 80 | SP 11° | 46W 5489lm | 500mA | |
Overview |
| 1E3633 | 2700K 80 | FL 85° | 48W 4827lm | 500mA | |
Overview |
| 1E3634 | 3000K 80 | FL 85° | 48W 5141lm | 500mA | |
Overview |
| 1E3635 | 3500K 80 | FL 85° | 48W 5260lm | 500mA | |
Overview |
| 1E3636 | 4000K 80 | FL 85° | 48W 5380lm | 500mA | |
Overview |
| 1E3637 | 2700K 80 | Grazing 76° / 15° | 48W 5368lm | 500mA | |
Overview |
| 1E3638 | 3000K 80 | Grazing 76° / 15° | 48W 5717lm | 500mA | |
Overview |
| 1E3639 | 3500K 80 | Grazing 76° / 15° | 48W 5850lm | 500mA | |
Overview |
| 1E3640 | 4000K 80 | Grazing 76° / 15° | 48W 5983lm | 500mA | |
Overview |
| 1E3641 | 2700K 80 | Wall Washer | 48W 4857lm | 500mA | |
Overview |
| 1E3642 | 3000K 80 | Wall Washer | 48W 5172lm | 500mA | |
Overview |
| 1E3643 | 3500K 80 | Wall Washer | 48W 5293lm | 500mA | |
Overview |
| 1E3644 | 4000K 80 | Wall Washer | 48W 5413lm | 500mA | |
Overview |
6
Jedi Compact Outdoor Encastrable
Driver distant - L. 905mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3843 | 2700K 80 | SP 11° | 35W 3557lm | 500mA | |
Overview |
| 1E3844 | 3000K 80 | SP 11° | 35W 3863lm | 500mA | |
Overview |
| 1E3845 | 3500K 80 | SP 11° | 35W 3982lm | 500mA | |
Overview |
| 1E3846 | 4000K 80 | SP 11° | 35W 4116lm | 500mA | |
Overview |
| 1E3609 | 2700K 80 | FL 85° | 36W 3620lm | 500mA | |
Overview |
| 1E3610 | 3000K 80 | FL 85° | 36W 3856lm | 500mA | |
Overview |
| 1E3611 | 3500K 80 | FL 85° | 36W 3945lm | 500mA | |
Overview |
| 1E3612 | 4000K 80 | FL 85° | 36W 4035lm | 500mA | |
Overview |
| 1E3613 | 2700K 80 | Grazing 76° / 15° | 36W 4026lm | 500mA | |
Overview |
| 1E3614 | 3000K 80 | Grazing 76° / 15° | 36W 4288lm | 500mA | |
Overview |
| 1E3615 | 3500K 80 | Grazing 76° / 15° | 36W 4388lm | 500mA | |
Overview |
| 1E3616 | 4000K 80 | Grazing 76° / 15° | 36W 4487lm | 500mA | |
Overview |
| 1E3617 | 2700K 80 | Wall Washer | 36W 3642lm | 500mA | |
Overview |
| 1E3618 | 3000K 80 | Wall Washer | 36W 3879lm | 500mA | |
Overview |
| 1E3619 | 3500K 80 | Wall Washer | 36W 3970lm | 500mA | |
Overview |
| 1E3620 | 4000K 80 | Wall Washer | 36W 4060lm | 500mA | |
Overview |
6
Jedi Compact Outdoor Encastrable
Driver distant - L. 625mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3839 | 2700K 80 | SP 11° | 23W 2371lm | 500mA | |
Overview |
| 1E3840 | 3000K 80 | SP 11° | 23W 2501lm | 500mA | |
Overview |
| 1E3841 | 3500K 80 | SP 11° | 23W 2655lm | 500mA | |
Overview |
| 1E3842 | 4000K 80 | SP 11° | 23W 2744lm | 500mA | |
Overview |
| 1E3585 | 2700K 80 | FL 85° | 24W 2413lm | 500mA | |
Overview |
| 1E3586 | 3000K 80 | FL 85° | 24W 2570lm | 500mA | |
Overview |
| 1E3587 | 3500K 80 | FL 85° | 24W 2630lm | 500mA | |
Overview |
| 1E3588 | 4000K 80 | FL 85° | 24W 2690lm | 500mA | |
Overview |
| 1E3589 | 2700K 80 | Grazing 76° / 15° | 24W 2684lm | 500mA | |
Overview |
| 1E3590 | 3000K 80 | Grazing 76° / 15° | 24W 2858lm | 500mA | |
Overview |
| 1E3591 | 3500K 80 | Grazing 76° / 15° | 24W 2924lm | 500mA | |
Overview |
| 1E3592 | 4000K 80 | Grazing 76° / 15° | 24W 2991lm | 500mA | |
Overview |
| 1E3593 | 2700K 80 | Wall Washer | 24W 2428lm | 500mA | |
Overview |
| 1E3594 | 3000K 80 | Wall Washer | 24W 2586lm | 500mA | |
Overview |
| 1E3595 | 3500K 80 | Wall Washer | 24W 2646lm | 500mA | |
Overview |
| 1E3596 | 4000K 80 | Wall Washer | 24W 2706lm | 500mA | |
Overview |
6
Jedi Compact Outdoor Encastrable
Driver distant - L. 344mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3835 | 2700K 80 | SP 11° | 12W 1186lm | 500mA | |
Overview |
| 1E3836 | 3000K 80 | SP 11° | 12W 1288lm | 500mA | |
Overview |
| 1E3837 | 3500K 80 | SP 11° | 12W 1327lm | 500mA | |
Overview |
| 1E3838 | 4000K 80 | SP 11° | 12W 1372lm | 500mA | |
Overview |
| 1E3561 | 2700K 80 | FL 85° | 12W 1207lm | 500mA | |
Overview |
| 1E3562 | 3000K 80 | FL 85° | 12W 1285lm | 500mA | |
Overview |
| 1E3563 | 3500K 80 | FL 85° | 12W 1315lm | 500mA | |
Overview |
| 1E3564 | 4000K 80 | FL 85° | 12W 1345lm | 500mA | |
Overview |
| 1E3565 | 2700K 80 | Grazing 76° / 15° | 12W 1342lm | 500mA | |
Overview |
| 1E3566 | 3000K 80 | Grazing 76° / 15° | 12W 1429lm | 500mA | |
Overview |
| 1E3567 | 3500K 80 | Grazing 76° / 15° | 12W 1462lm | 500mA | |
Overview |
| 1E3568 | 4000K 80 | Grazing 76° / 15° | 12W 1495lm | 500mA | |
Overview |
| 1E3569 | 2700K 80 | Wall Washer | 12W 1214lm | 500mA | |
Overview |
| 1E3570 | 3000K 80 | Wall Washer | 12W 1293lm | 500mA | |
Overview |
| 1E3571 | 3500K 80 | Wall Washer | 12W 1323lm | 500mA | |
Overview |
| 1E3572 | 4000K 80 | Wall Washer | 12W 1353lm | 500mA | |
Overview |
6

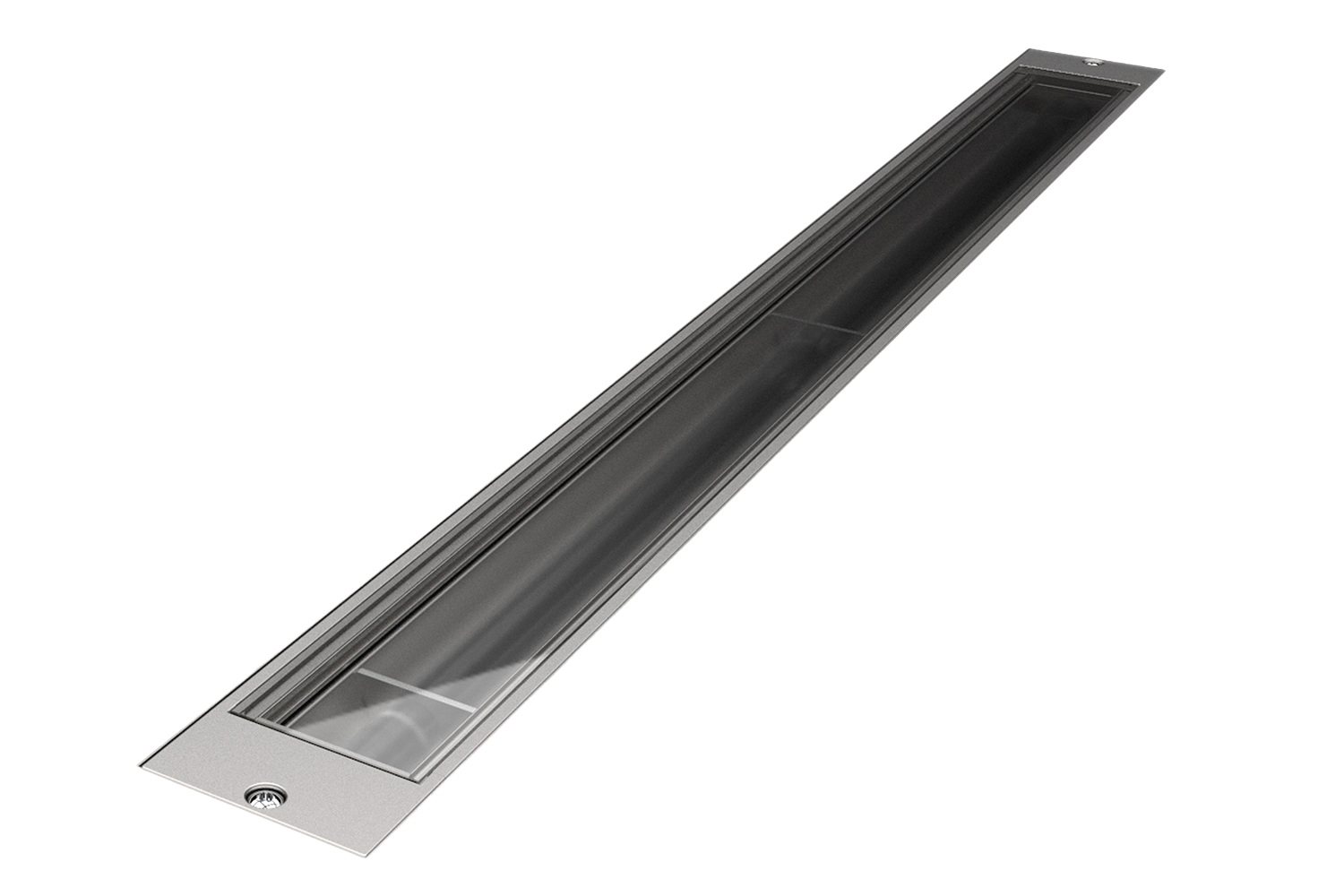

Jedi Compact Outdoor Encastrable
Louvre - Driver distant - L. 1185mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3645 | 2700K 80 | FL 86° | 48W 2823lm | 500mA | |
Overview |
| 1E3646 | 3000K 80 | FL 86° | 48W 3007lm | 500mA | |
Overview |
| 1E3647 | 3500K 80 | FL 86° | 48W 3076lm | 500mA | |
Overview |
| 1E3648 | 4000K 80 | FL 86° | 48W 3146lm | 500mA | |
Overview |
| 1E3649 | 2700K 80 | Grazing 80° / 13° | 48W 3424lm | 500mA | |
Overview |
| 1E3650 | 3000K 80 | Grazing 80° / 13° | 48W 3646lm | 500mA | |
Overview |
| 1E3651 | 3500K 80 | Grazing 80° / 13° | 48W 3731lm | 500mA | |
Overview |
| 1E3652 | 4000K 80 | Grazing 80° / 13° | 48W 3816lm | 500mA | |
Overview |
| 1E3653 | 2700K 80 | Wall Washer | 48W 3663lm | 500mA | |
Overview |
| 1E3654 | 3000K 80 | Wall Washer | 48W 3901lm | 500mA | |
Overview |
| 1E3655 | 3500K 80 | Wall Washer | 48W 3992lm | 500mA | |
Overview |
| 1E3656 | 4000K 80 | Wall Washer | 48W 4082lm | 500mA | |
Overview |
2
Jedi Compact Outdoor Encastrable
Louvre - Driver distant - L. 905mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3621 | 2700K 80 | FL 86° | 36W 2117lm | 500mA | |
Overview |
| 1E3622 | 3000K 80 | FL 86° | 36W 2255lm | 500mA | |
Overview |
| 1E3623 | 3500K 80 | FL 86° | 36W 2307lm | 500mA | |
Overview |
| 1E3624 | 4000K 80 | FL 86° | 36W 2360lm | 500mA | |
Overview |
| 1E3625 | 2700K 80 | Grazing 80° / 13° | 36W 2568lm | 500mA | |
Overview |
| 1E3626 | 3000K 80 | Grazing 80° / 13° | 36W 2735lm | 500mA | |
Overview |
| 1E3627 | 3500K 80 | Grazing 80° / 13° | 36W 2798lm | 500mA | |
Overview |
| 1E3628 | 4000K 80 | Grazing 80° / 13° | 36W 2862lm | 500mA | |
Overview |
| 1E3629 | 2700K 80 | Wall Washer | 36W 2747lm | 500mA | |
Overview |
| 1E3630 | 3000K 80 | Wall Washer | 36W 2926lm | 500mA | |
Overview |
| 1E3631 | 3500K 80 | Wall Washer | 36W 2994lm | 500mA | |
Overview |
| 1E3632 | 4000K 80 | Wall Washer | 36W 3062lm | 500mA | |
Overview |
2
Jedi Compact Outdoor Encastrable
Louvre - Driver distant - L. 625mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3597 | 2700K 80 | FL 86° | 24W 1412lm | 500mA | |
Overview |
| 1E3598 | 3000K 80 | FL 86° | 24W 1503lm | 500mA | |
Overview |
| 1E3599 | 3500K 80 | FL 86° | 24W 1538lm | 500mA | |
Overview |
| 1E3600 | 4000K 80 | FL 86° | 24W 1573lm | 500mA | |
Overview |
| 1E3601 | 2700K 80 | Grazing 80° / 13° | 24W 1712lm | 500mA | |
Overview |
| 1E3602 | 3000K 80 | Grazing 80° / 13° | 24W 1824lm | 500mA | |
Overview |
| 1E3603 | 3500K 80 | Grazing 80° / 13° | 24W 1866lm | 500mA | |
Overview |
| 1E3604 | 4000K 80 | Grazing 80° / 13° | 24W 1908lm | 500mA | |
Overview |
| 1E3605 | 2700K 80 | Wall Washer | 24W 1831lm | 500mA | |
Overview |
| 1E3606 | 3000K 80 | Wall Washer | 24W 1950lm | 500mA | |
Overview |
| 1E3607 | 3500K 80 | Wall Washer | 24W 1996lm | 500mA | |
Overview |
| 1E3608 | 4000K 80 | Wall Washer | 24W 2041lm | 500mA | |
Overview |
2
Jedi Compact Outdoor Encastrable
Louvre - Driver distant - L. 344mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3573 | 2700K 80 | FL 86° | 12W 706lm | 500mA | |
Overview |
| 1E3574 | 3000K 80 | FL 86° | 12W 752lm | 500mA | |
Overview |
| 1E3575 | 3500K 80 | FL 86° | 12W 769lm | 500mA | |
Overview |
| 1E3576 | 4000K 80 | FL 86° | 12W 787lm | 500mA | |
Overview |
| 1E3577 | 2700K 80 | Grazing 80° / 13° | 12W 856lm | 500mA | |
Overview |
| 1E3578 | 3000K 80 | Grazing 80° / 13° | 12W 912lm | 500mA | |
Overview |
| 1E3579 | 3500K 80 | Grazing 80° / 13° | 12W 933lm | 500mA | |
Overview |
| 1E3580 | 4000K 80 | Grazing 80° / 13° | 12W 954lm | 500mA | |
Overview |
| 1E3581 | 2700K 80 | Wall Washer | 12W 916lm | 500mA | |
Overview |
| 1E3582 | 3000K 80 | Wall Washer | 12W 975lm | 500mA | |
Overview |
| 1E3583 | 3500K 80 | Wall Washer | 12W 998lm | 500mA | |
Overview |
| 1E3584 | 4000K 80 | Wall Washer | 12W 1021lm | 500mA | |
Overview |
2
Jedi Compact Outdoor Encastrable
Driver intégré - L. 1185mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3859EL | 2700K 80 | SP 11° | 51W 4743lm | 220-240Vac ON-OFF | |
Overview |
| 1E3860EL | 3000K 80 | SP 11° | 51W 5151lm | 220-240Vac ON-OFF | |
Overview |
| 1E3861EL | 3500K 80 | SP 11° | 51W 5310lm | 220-240Vac ON-OFF | |
Overview |
| 1E3862EL | 4000K 80 | SP 11° | 51W 5489lm | 220-240Vac ON-OFF | |
Overview |
| 1E3859DA | 2700K 80 | SP 11° | 51W 4743lm | 220-240Vac DALI | |
Overview |
| 1E3860DA | 3000K 80 | SP 11° | 51W 5151lm | 220-240Vac DALI | |
Overview |
| 1E3861DA | 3500K 80 | SP 11° | 51W 5310lm | 220-240Vac DALI | |
Overview |
| 1E3862DA | 4000K 80 | SP 11° | 51W 5489lm | 220-240Vac DALI | |
Overview |
| 1E3705EL | 2700K 80 | FL 85° | 53W 4827lm | 220-240Vac ON-OFF | |
Overview |
| 1E3706EL | 3000K 80 | FL 85° | 53W 5141lm | 220-240Vac ON-OFF | |
Overview |
| 1E3707EL | 3500K 80 | FL 85° | 53W 5260lm | 220-240Vac ON-OFF | |
Overview |
| 1E3708EL | 4000K 80 | FL 85° | 53W 5380lm | 220-240Vac ON-OFF | |
Overview |
| 1E3705DA | 2700K 80 | FL 85° | 53W 4827lm | 220-240Vac DALI | |
Overview |
| 1E3706DA | 3000K 80 | FL 85° | 53W 5141lm | 220-240Vac DALI | |
Overview |
| 1E3707DA | 3500K 80 | FL 85° | 53W 5260lm | 220-240Vac DALI | |
Overview |
| 1E3708DA | 4000K 80 | FL 85° | 53W 5380lm | 220-240Vac DALI | |
Overview |
| 1E3709EL | 2700K 80 | Grazing 76° / 15° | 53W 5368lm | 220-240Vac ON-OFF | |
Overview |
| 1E3710EL | 3000K 80 | Grazing 76° / 15° | 53W 5717lm | 220-240Vac ON-OFF | |
Overview |
| 1E3711EL | 3500K 80 | Grazing 76° / 15° | 53W 5850lm | 220-240Vac ON-OFF | |
Overview |
| 1E3712EL | 4000K 80 | Grazing 76° / 15° | 53W 5983lm | 220-240Vac ON-OFF | |
Overview |
| 1E3709DA | 2700K 80 | Grazing 76° / 15° | 53W 5368lm | 220-240Vac DALI | |
Overview |
| 1E3710DA | 3000K 80 | Grazing 76° / 15° | 53W 5717lm | 220-240Vac DALI | |
Overview |
| 1E3711DA | 3500K 80 | Grazing 76° / 15° | 53W 5850lm | 220-240Vac DALI | |
Overview |
| 1E3712DA | 4000K 80 | Grazing 76° / 15° | 53W 5983lm | 220-240Vac DALI | |
Overview |
| 1E3713EL | 2700K 80 | Wall Washer | 53W 4858lm | 220-240Vac ON-OFF | |
Overview |
| 1E3714EL | 3000K 80 | Wall Washer | 53W 5173lm | 220-240Vac ON-OFF | |
Overview |
| 1E3715EL | 3500K 80 | Wall Washer | 53W 5294lm | 220-240Vac ON-OFF | |
Overview |
| 1E3716EL | 4000K 80 | Wall Washer | 53W 5414lm | 220-240Vac ON-OFF | |
Overview |
| 1E3713DA | 2700K 80 | Wall Washer | 53W 4858lm | 220-240Vac DALI | |
Overview |
| 1E3714DA | 3000K 80 | Wall Washer | 53W 5173lm | 220-240Vac DALI | |
Overview |
| 1E3715DA | 3500K 80 | Wall Washer | 53W 5294lm | 220-240Vac DALI | |
Overview |
| 1E3716DA | 4000K 80 | Wall Washer | 53W 5414lm | 220-240Vac DALI | |
Overview |
22

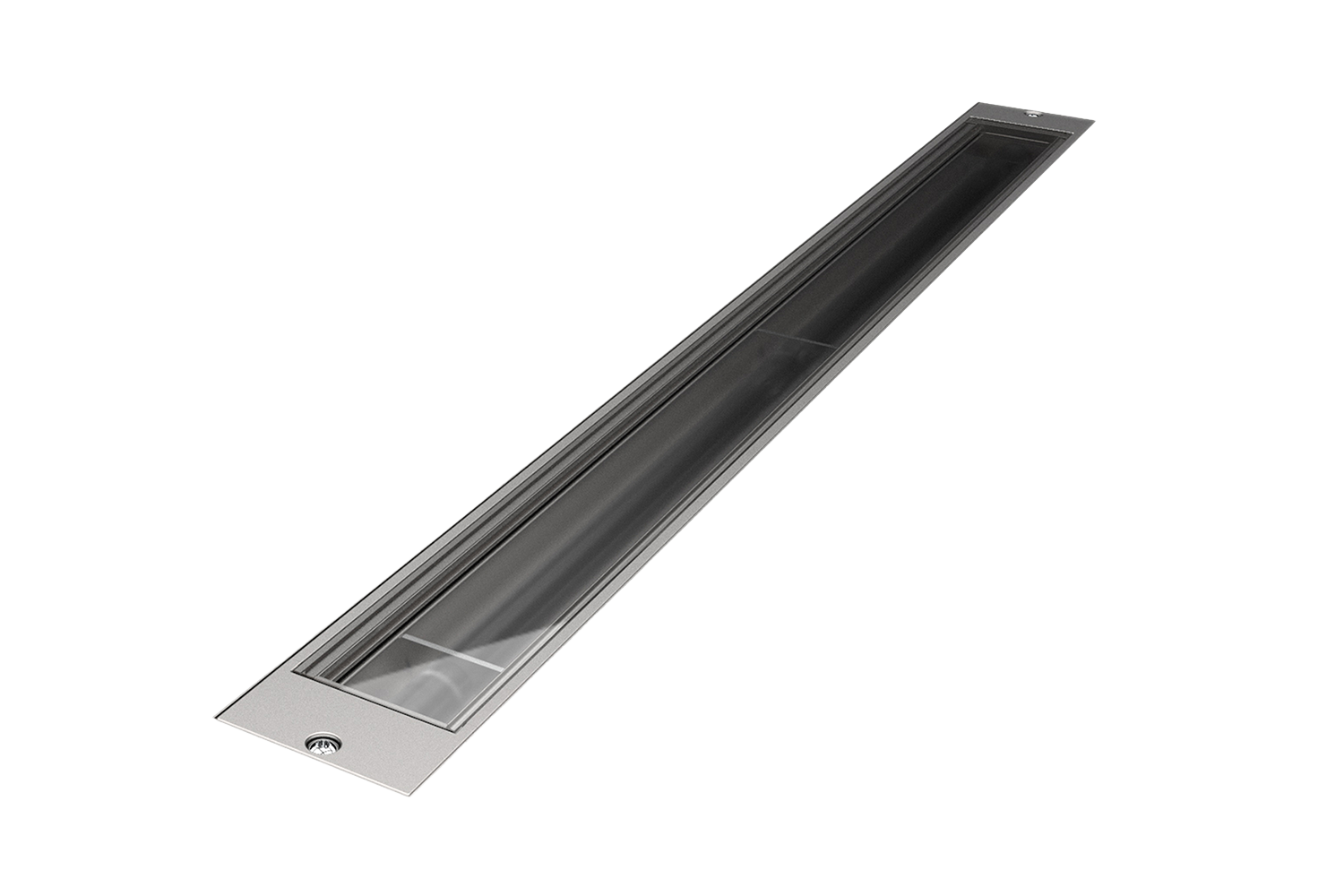

Jedi Compact Outdoor Encastrable
Driver intégré - L. 905mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3855EL | 2700K 80 | SP 11° | 38W 3557lm | 220-240Vac ON-OFF | |
Overview |
| 1E3856EL | 3000K 80 | SP 11° | 38W 3863lm | 220-240Vac ON-OFF | |
Overview |
| 1E3857EL | 3500K 80 | SP 11° | 38W 3982lm | 220-240Vac ON-OFF | |
Overview |
| 1E3858EL | 4000K 80 | SP 11° | 38W 4116lm | 220-240Vac ON-OFF | |
Overview |
| 1E3855DA | 2700K 80 | SP 11° | 38W 3557lm | 220-240Vac DALI | |
Overview |
| 1E3856DA | 3000K 80 | SP 11° | 38W 3863lm | 220-240Vac DALI | |
Overview |
| 1E3857DA | 3500K 80 | SP 11° | 38W 3982lm | 220-240Vac DALI | |
Overview |
| 1E3858DA | 4000K 80 | SP 11° | 38W 4116lm | 220-240Vac DALI | |
Overview |
| 1E3681EL | 2700K 80 | FL 85° | 40W 3620lm | 220-240Vac ON-OFF | |
Overview |
| 1E3682EL | 3000K 80 | FL 85° | 40W 3856lm | 220-240Vac ON-OFF | |
Overview |
| 1E3683EL | 3500K 80 | FL 85° | 40W 3945lm | 220-240Vac ON-OFF | |
Overview |
| 1E3684EL | 4000K 80 | FL 85° | 40W 4035lm | 220-240Vac ON-OFF | |
Overview |
| 1E3681DA | 2700K 80 | FL 85° | 40W 3620lm | 220-240Vac DALI | |
Overview |
| 1E3682DA | 3000K 80 | FL 85° | 40W 3856lm | 220-240Vac DALI | |
Overview |
| 1E3683DA | 3500K 80 | FL 85° | 40W 3945lm | 220-240Vac DALI | |
Overview |
| 1E3684DA | 4000K 80 | FL 85° | 40W 4035lm | 220-240Vac DALI | |
Overview |
| 1E3685EL | 2700K 80 | Grazing 76° / 15° | 40W 4026lm | 220-240Vac ON-OFF | |
Overview |
| 1E3686EL | 3000K 80 | Grazing 76° / 15° | 40W 4288lm | 220-240Vac ON-OFF | |
Overview |
| 1E3687EL | 3500K 80 | Grazing 76° / 15° | 40W 4388lm | 220-240Vac ON-OFF | |
Overview |
| 1E3688EL | 4000K 80 | Grazing 76° / 15° | 40W 4487lm | 220-240Vac ON-OFF | |
Overview |
| 1E3685DA | 2700K 80 | Grazing 76° / 15° | 40W 4026lm | 220-240Vac DALI | |
Overview |
| 1E3686DA | 3000K 80 | Grazing 76° / 15° | 40W 4288lm | 220-240Vac DALI | |
Overview |
| 1E3687DA | 3500K 80 | Grazing 76° / 15° | 40W 4388lm | 220-240Vac DALI | |
Overview |
| 1E3688DA | 4000K 80 | Grazing 76° / 15° | 40W 4487lm | 220-240Vac DALI | |
Overview |
| 1E3689EL | 2700K 80 | Wall Washer | 40W 3643lm | 220-240Vac ON-OFF | |
Overview |
| 1E3690EL | 3000K 80 | Wall Washer | 40W 3880lm | 220-240Vac ON-OFF | |
Overview |
| 1E3691EL | 3500K 80 | Wall Washer | 40W 3970lm | 220-240Vac ON-OFF | |
Overview |
| 1E3692EL | 4000K 80 | Wall Washer | 40W 4060lm | 220-240Vac ON-OFF | |
Overview |
| 1E3689DA | 2700K 80 | Wall Washer | 40W 3643lm | 220-240Vac DALI | |
Overview |
| 1E3690DA | 3000K 80 | Wall Washer | 40W 3880lm | 220-240Vac DALI | |
Overview |
| 1E3691DA | 3500K 80 | Wall Washer | 40W 3970lm | 220-240Vac DALI | |
Overview |
| 1E3692DA | 4000K 80 | Wall Washer | 40W 4060lm | 220-240Vac DALI | |
Overview |
22
Jedi Compact Outdoor Encastrable
Driver intégré - L. 625mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3851EL | 2700K 80 | SP 11° | 26W 2371lm | 220-240Vac ON-OFF | |
Overview |
| 1E3852EL | 3000K 80 | SP 11° | 26W 2575lm | 220-240Vac ON-OFF | |
Overview |
| 1E3853EL | 3500K 80 | SP 11° | 26W 2655lm | 220-240Vac ON-OFF | |
Overview |
| 1E3854EL | 4000K 80 | SP 11° | 26W 2744lm | 220-240Vac ON-OFF | |
Overview |
| 1E3851DA | 2700K 80 | SP 11° | 26W 2371lm | 220-240Vac DALI | |
Overview |
| 1E3852DA | 3000K 80 | SP 11° | 26W 2575lm | 220-240Vac DALI | |
Overview |
| 1E3853DA | 3500K 80 | SP 11° | 26W 2655lm | 220-240Vac DALI | |
Overview |
| 1E3854DA | 4000K 80 | SP 11° | 26W 2744lm | 220-240Vac DALI | |
Overview |
| 1E3657EL | 2700K 80 | FL 85° | 28W 2413lm | 220-240Vac ON-OFF | |
Overview |
| 1E3658EL | 3000K 80 | FL 85° | 28W 2570lm | 220-240Vac ON-OFF | |
Overview |
| 1E3659EL | 3500K 80 | FL 85° | 28W 2630lm | 220-240Vac ON-OFF | |
Overview |
| 1E3660EL | 4000K 80 | FL 85° | 28W 2690lm | 220-240Vac ON-OFF | |
Overview |
| 1E3657DA | 2700K 80 | FL 85° | 28W 2413lm | 220-240Vac DALI | |
Overview |
| 1E3658DA | 3000K 80 | FL 85° | 28W 2570lm | 220-240Vac DALI | |
Overview |
| 1E3659DA | 3500K 80 | FL 85° | 28W 2630lm | 220-240Vac DALI | |
Overview |
| 1E3660DA | 4000K 80 | FL 85° | 28W 2690lm | 220-240Vac DALI | |
Overview |
| 1E3661EL | 2700K 80 | Grazing 76° / 15° | 28W 2684lm | 220-240Vac ON-OFF | |
Overview |
| 1E3662EL | 3000K 80 | Grazing 76° / 15° | 28W 2858lm | 220-240Vac ON-OFF | |
Overview |
| 1E3663EL | 3500K 80 | Grazing 76° / 15° | 28W 2924lm | 220-240Vac ON-OFF | |
Overview |
| 1E3664EL | 4000K 80 | Grazing 76° / 15° | 28W 2991lm | 220-240Vac ON-OFF | |
Overview |
| 1E3661DA | 2700K 80 | Grazing 76° / 15° | 28W 2684lm | 220-240Vac DALI | |
Overview |
| 1E3662DA | 3000K 80 | Grazing 76° / 15° | 28W 2858lm | 220-240Vac DALI | |
Overview |
| 1E3663DA | 3500K 80 | Grazing 76° / 15° | 28W 2924lm | 220-240Vac DALI | |
Overview |
| 1E3664DA | 4000K 80 | Grazing 76° / 15° | 28W 2991lm | 220-240Vac DALI | |
Overview |
| 1E3665EL | 2700K 80 | Wall Washer | 28W 2428lm | 220-240Vac ON-OFF | |
Overview |
| 1E3666EL | 3000K 80 | Wall Washer | 28W 2586lm | 220-240Vac ON-OFF | |
Overview |
| 1E3667EL | 3500K 80 | Wall Washer | 28W 2646lm | 220-240Vac ON-OFF | |
Overview |
| 1E3668EL | 4000K 80 | Wall Washer | 28W 2706lm | 220-240Vac ON-OFF | |
Overview |
| 1E3665DA | 2700K 80 | Wall Washer | 28W 2428lm | 220-240Vac DALI | |
Overview |
| 1E3666DA | 3000K 80 | Wall Washer | 28W 2586lm | 220-240Vac DALI | |
Overview |
| 1E3667DA | 3500K 80 | Wall Washer | 28W 2646lm | 220-240Vac DALI | |
Overview |
| 1E3668DA | 4000K 80 | Wall Washer | 28W 2706lm | 220-240Vac DALI | |
Overview |
22
Jedi Compact Outdoor Encastrable
Louvre - Driver intégré - L. 1185mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3717EL | 2700K 80 | FL 86° | 53W 2823lm | 220-240Vac ON-OFF | |
Overview |
| 1E3718EL | 3000K 80 | FL 86° | 53W 3007lm | 220-240Vac ON-OFF | |
Overview |
| 1E3719EL | 3500K 80 | FL 86° | 53W 3076lm | 220-240Vac ON-OFF | |
Overview |
| 1E3720EL | 4000K 80 | FL 86° | 53W 3146lm | 220-240Vac ON-OFF | |
Overview |
| 1E3717DA | 2700K 80 | FL 86° | 53W 2823lm | 220-240Vac DALI | |
Overview |
| 1E3718DA | 3000K 80 | FL 86° | 53W 3007lm | 220-240Vac DALI | |
Overview |
| 1E3719DA | 3500K 80 | FL 86° | 53W 3076lm | 220-240Vac DALI | |
Overview |
| 1E3720DA | 4000K 80 | FL 86° | 53W 3146lm | 220-240Vac DALI | |
Overview |
| 1E3721EL | 2700K 80 | Grazing 80° / 13° | 53W 3424lm | 220-240Vac ON-OFF | |
Overview |
| 1E3722EL | 3000K 80 | Grazing 80° / 13° | 53W 3646lm | 220-240Vac ON-OFF | |
Overview |
| 1E3723EL | 3500K 80 | Grazing 80° / 13° | 53W 3731lm | 220-240Vac ON-OFF | |
Overview |
| 1E3724EL | 4000K 80 | Grazing 80° / 13° | 53W 3816lm | 220-240Vac ON-OFF | |
Overview |
| 1E3721DA | 2700K 80 | Grazing 80° / 13° | 53W 3424lm | 220-240Vac DALI | |
Overview |
| 1E3722DA | 3000K 80 | Grazing 80° / 13° | 53W 3646lm | 220-240Vac DALI | |
Overview |
| 1E3723DA | 3500K 80 | Grazing 80° / 13° | 53W 3731lm | 220-240Vac DALI | |
Overview |
| 1E3724DA | 4000K 80 | Grazing 80° / 13° | 53W 3816lm | 220-240Vac DALI | |
Overview |
| 1E3725EL | 2700K 80 | Wall Washer | 53W 3663lm | 220-240Vac ON-OFF | |
Overview |
| 1E3726EL | 3000K 80 | Wall Washer | 53W 3901lm | 220-240Vac ON-OFF | |
Overview |
| 1E3727EL | 3500K 80 | Wall Washer | 53W 3992lm | 220-240Vac ON-OFF | |
Overview |
| 1E3728EL | 4000K 80 | Wall Washer | 53W 4082lm | 220-240Vac ON-OFF | |
Overview |
| 1E3725DA | 2700K 80 | Wall Washer | 53W 3663lm | 220-240Vac DALI | |
Overview |
| 1E3726DA | 3000K 80 | Wall Washer | 53W 3901lm | 220-240Vac DALI | |
Overview |
| 1E3727DA | 3500K 80 | Wall Washer | 53W 3992lm | 220-240Vac DALI | |
Overview |
| 1E3728DA | 4000K 80 | Wall Washer | 53W 4082lm | 220-240Vac DALI | |
Overview |
14
Jedi Compact Outdoor Encastrable
Louvre - Driver intégré - L. 905mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3693EL | 2700K 80 | FL 86° | 40W 2117lm | 220-240Vac ON-OFF | |
Overview |
| 1E3694EL | 3000K 80 | FL 86° | 40W 2255lm | 220-240Vac ON-OFF | |
Overview |
| 1E3695EL | 3500K 80 | FL 86° | 40W 2307lm | 220-240Vac ON-OFF | |
Overview |
| 1E3696EL | 4000K 80 | FL 86° | 40W 2360lm | 220-240Vac ON-OFF | |
Overview |
| 1E3693DA | 2700K 80 | FL 86° | 40W 2117lm | 220-240Vac DALI | |
Overview |
| 1E3694DA | 3000K 80 | FL 86° | 40W 2255lm | 220-240Vac DALI | |
Overview |
| 1E3695DA | 3500K 80 | FL 86° | 40W 2307lm | 220-240Vac DALI | |
Overview |
| 1E3696DA | 4000K 80 | FL 86° | 40W 2360lm | 220-240Vac DALI | |
Overview |
| 1E3697EL | 2700K 80 | Grazing 80° / 13° | 40W 2568lm | 220-240Vac ON-OFF | |
Overview |
| 1E3698EL | 3000K 80 | Grazing 80° / 13° | 40W 2735lm | 220-240Vac ON-OFF | |
Overview |
| 1E3699EL | 3500K 80 | Grazing 80° / 13° | 40W 2798lm | 220-240Vac ON-OFF | |
Overview |
| 1E3700EL | 4000K 80 | Grazing 80° / 13° | 40W 2862lm | 220-240Vac ON-OFF | |
Overview |
| 1E3697DA | 2700K 80 | Grazing 80° / 13° | 40W 2568lm | 220-240Vac DALI | |
Overview |
| 1E3698DA | 3000K 80 | Grazing 80° / 13° | 40W 2735lm | 220-240Vac DALI | |
Overview |
| 1E3699DA | 3500K 80 | Grazing 80° / 13° | 40W 2798lm | 220-240Vac DALI | |
Overview |
| 1E3700DA | 4000K 80 | Grazing 80° / 13° | 40W 2862lm | 220-240Vac DALI | |
Overview |
| 1E3701EL | 2700K 80 | Wall Washer | 40W 2747lm | 220-240Vac ON-OFF | |
Overview |
| 1E3702EL | 3000K 80 | Wall Washer | 40W 2926lm | 220-240Vac ON-OFF | |
Overview |
| 1E3703EL | 3500K 80 | Wall Washer | 40W 2994lm | 220-240Vac ON-OFF | |
Overview |
| 1E3704EL | 4000K 80 | Wall Washer | 40W 3062lm | 220-240Vac ON-OFF | |
Overview |
| 1E3701DA | 2700K 80 | Wall Washer | 40W 2747lm | 220-240Vac DALI | |
Overview |
| 1E3702DA | 3000K 80 | Wall Washer | 40W 2926lm | 220-240Vac DALI | |
Overview |
| 1E3703DA | 3500K 80 | Wall Washer | 40W 2994lm | 220-240Vac DALI | |
Overview |
| 1E3704DA | 4000K 80 | Wall Washer | 40W 3062lm | 220-240Vac DALI | |
Overview |
14
Jedi Compact Outdoor Encastrable
Louvre - Driver intégré - L. 625mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1E3669EL | 2700K 80 | FL 86° | 28W 1412lm | 220-240Vac ON-OFF | |
Overview |
| 1E3670EL | 3000K 80 | FL 86° | 28W 1503lm | 220-240Vac ON-OFF | |
Overview |
| 1E3671EL | 3500K 80 | FL 86° | 28W 1538lm | 220-240Vac ON-OFF | |
Overview |
| 1E3672EL | 4000K 80 | FL 86° | 28W 1573lm | 220-240Vac ON-OFF | |
Overview |
| 1E3669DA | 2700K 80 | FL 86° | 28W 1412lm | 220-240Vac DALI | |
Overview |
| 1E3670DA | 3000K 80 | FL 86° | 28W 1503lm | 220-240Vac DALI | |
Overview |
| 1E3671DA | 3500K 80 | FL 86° | 28W 1538lm | 220-240Vac DALI | |
Overview |
| 1E3672DA | 4000K 80 | FL 86° | 28W 1573lm | 220-240Vac DALI | |
Overview |
| 1E3673EL | 2700K 80 | Grazing 80° / 13° | 28W 1712lm | 220-240Vac ON-OFF | |
Overview |
| 1E3674EL | 3000K 80 | Grazing 80° / 13° | 28W 1824lm | 220-240Vac ON-OFF | |
Overview |
| 1E3675EL | 3500K 80 | Grazing 80° / 13° | 28W 1866lm | 220-240Vac ON-OFF | |
Overview |
| 1E3676EL | 4000K 80 | Grazing 80° / 13° | 28W 1908lm | 220-240Vac ON-OFF | |
Overview |
| 1E3673DA | 2700K 80 | Grazing 80° / 13° | 28W 1712lm | 220-240Vac DALI | |
Overview |
| 1E3674DA | 3000K 80 | Grazing 80° / 13° | 28W 1824lm | 220-240Vac DALI | |
Overview |
| 1E3675DA | 3500K 80 | Grazing 80° / 13° | 28W 1866lm | 220-240Vac DALI | |
Overview |
| 1E3676DA | 4000K 80 | Grazing 80° / 13° | 28W 1908lm | 220-240Vac DALI | |
Overview |
| 1E3677EL | 2700K 80 | Wall Washer | 28W 1831lm | 220-240Vac ON-OFF | |
Overview |
| 1E3678EL | 3000K 80 | Wall Washer | 28W 1950lm | 220-240Vac ON-OFF | |
Overview |
| 1E3679EL | 3500K 80 | Wall Washer | 28W 1996lm | 220-240Vac ON-OFF | |
Overview |
| 1E3680EL | 4000K 80 | Wall Washer | 28W 2041lm | 220-240Vac ON-OFF | |
Overview |
| 1E3677DA | 2700K 80 | Wall Washer | 28W 1831lm | 220-240Vac DALI | |
Overview |
| 1E3678DA | 3000K 80 | Wall Washer | 28W 1950lm | 220-240Vac DALI | |
Overview |
| 1E3679DA | 3500K 80 | Wall Washer | 28W 1996lm | 220-240Vac DALI | |
Overview |
| 1E3680DA | 4000K 80 | Wall Washer | 28W 2041lm | 220-240Vac DALI | |
Overview |
14
