Concept

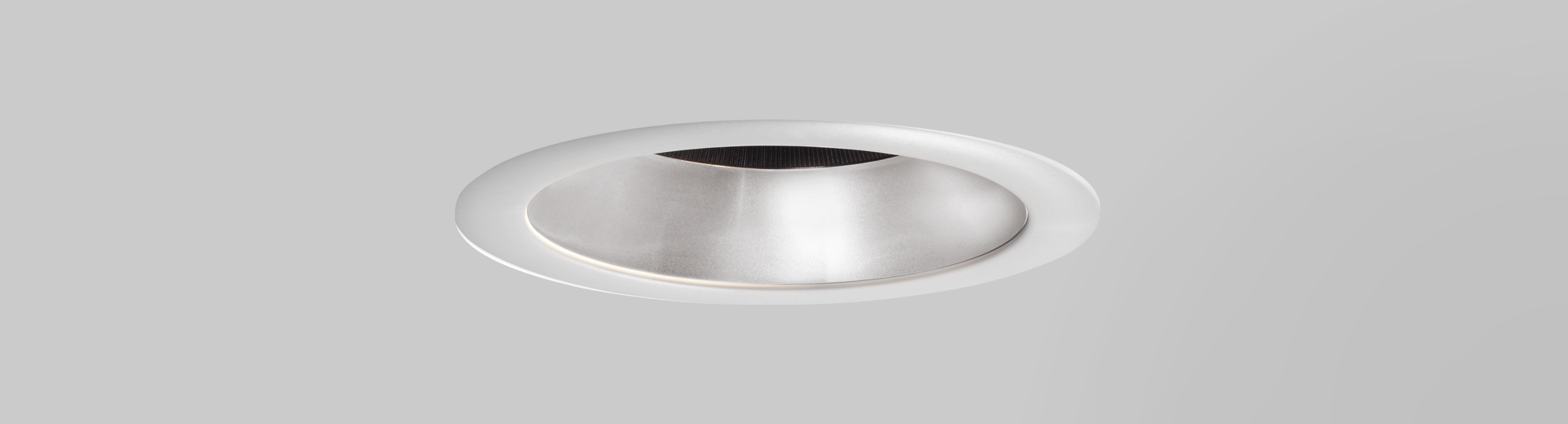

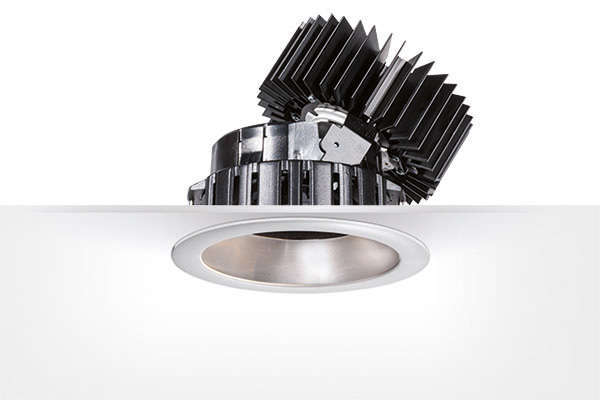

Low luminance adjustable recessed LED projector.
Material
Black painted aluminium body.
Black anodized extruded aluminium heat sink.
Painted black metal adjustable graduated mounting bracket.

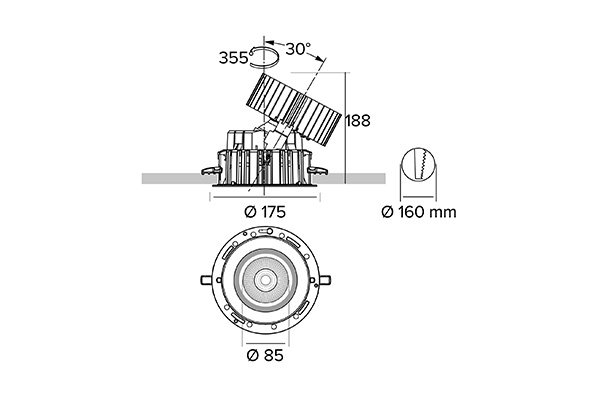

Adjustable 355° on the horizontal plane and 30° on the vertical plane with micrometric aiming system.
Double aiming lock.
Passive heat sink cooling system.
Source
High efficiency Ra80 LED Chip on Board.
Ra97 on request.
Optic
Polycarbonate secondary reflector with matt metallized lower finish and anti-glare grooved black upper finish; primary Optic System made of convex faceted high reflectance mirror effect metallized polycarbonate precision optics, and covered with a "Scratch Proof Formula" treatment.
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
To be completed with a decorative ring.
Power Supply
Electronic, electronic dimmable 1-10V and DALI dimmable driver included.
Emergency kit with a 3h battery available as an accessory.
Notes
Casambi control system available using a dedicated accessory (only for DALI version products).
Ra90: to order this version it is necessary to add the suffix "90" at the end of the standard code (Ra80).
110-277Vac version available on request.
