Concept
Eurostandard Plus track.
System is a 3 phase mixed system with two additional conductors intended to manage a general data signal (for example DALI, DMX).Material

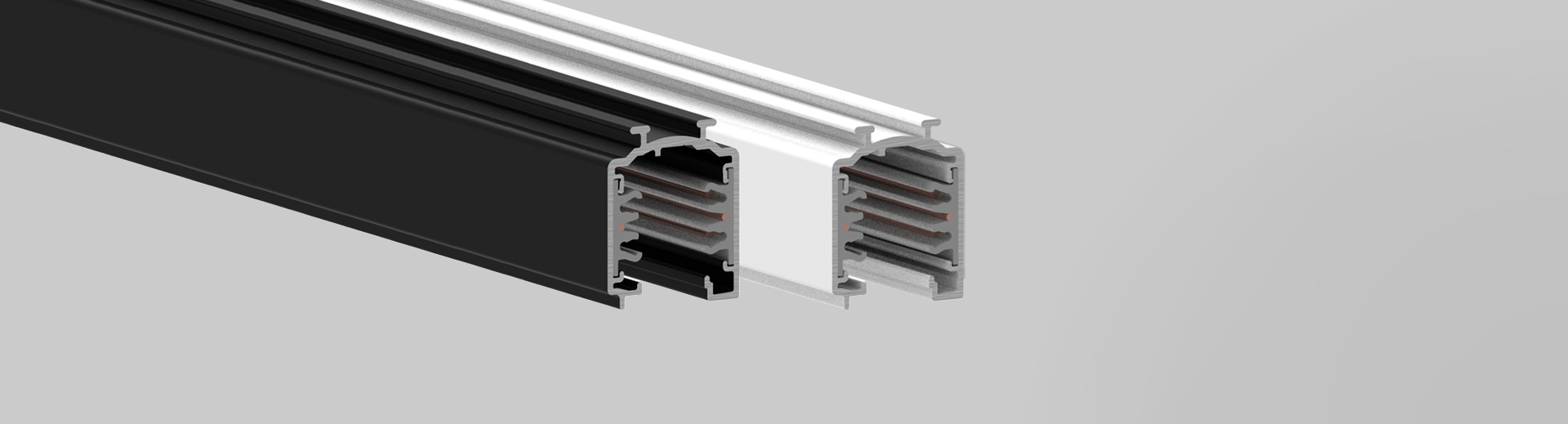

Electrified track in three lengths in extruded anodized aluminium or in extruded painted aluminium.
PVC insulated copper conductors.Installation
There are three possible installation systems: directly in false ceilings (using the needlepoints on the track and the suspension kit), on ceilings using a metal clip or suspension using a mounting kit.Power Supply
Frequency: 50Hz.
Rated current and voltage: L1/L2/L3/N/ground 16A/440V + D+/D- 2x1A/50V FELV AC (DALI).
Phase / phases power: 3.6kVA / 10.8kVA.Notes
There is a polarity on the lighting track to guarantee the right connection of multiple pieces of the track.
Also end-feeds and connection joints have a polarity that must be taken into account when choosing the right component.
