Concept

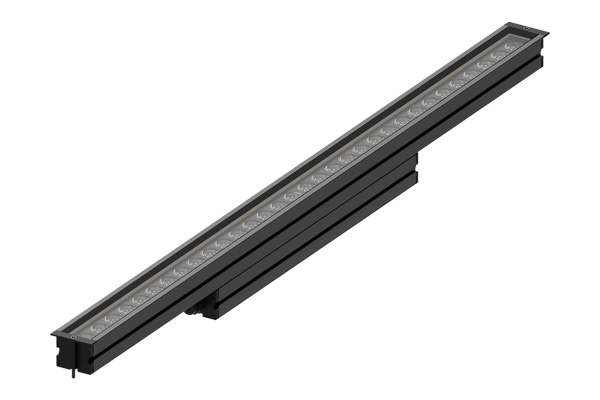

Recessed linear LED projector.Material
Extruded anodised aluminium 15µ body.
Extra clear 10mm thick glass flat screen.

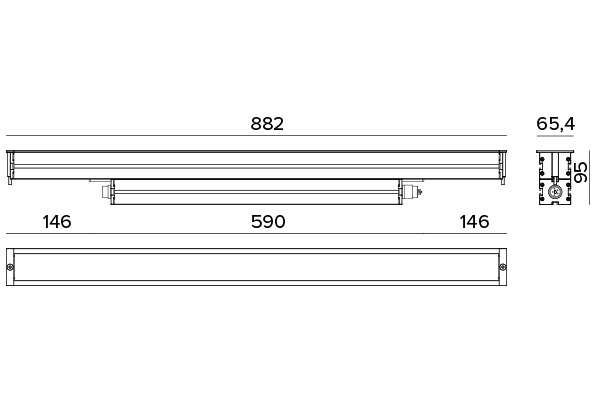

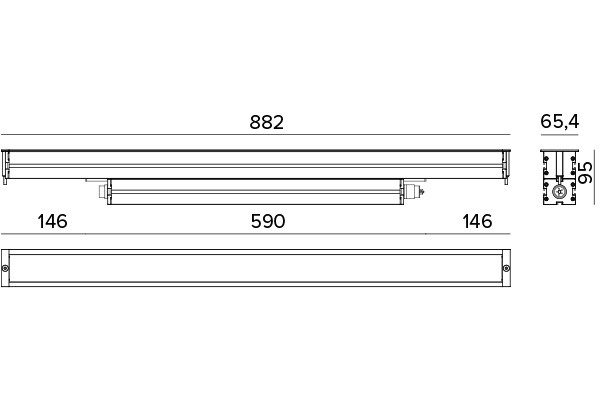

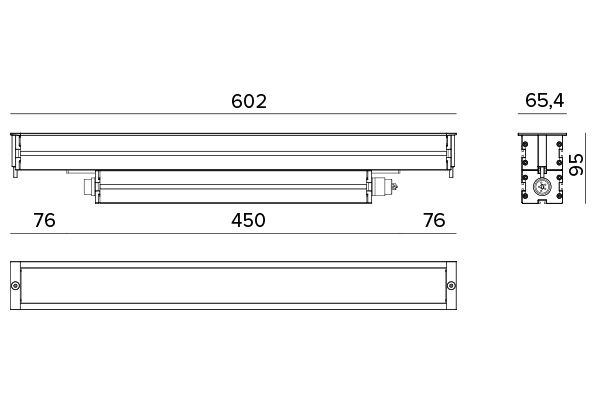

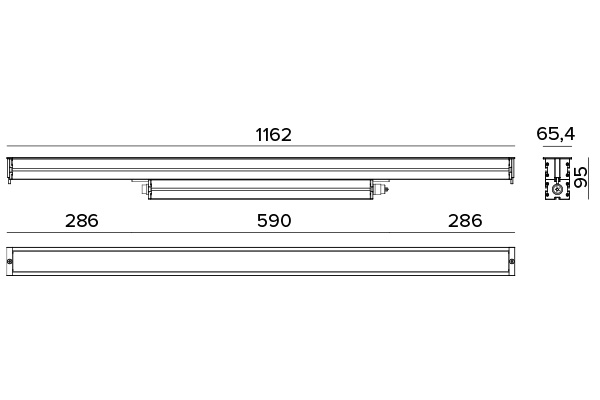

Available in 3 different lengths: 600/900/1200mm.Source
High Power High Efficiency Ra80 linear LED board (Grazing 10°x10°, Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Flood 30°x30°)/Mid Power (Grazing 15°x75°, Flood 60°x60°, Flood 75°x75°, Wall Washer, Opal).Optic
Internal optical unit varies according to the emission.
Grazing 10°x10°, Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Flood 30°x30°: optics made of optical grade PMMA TIR lenses and a holographic filter.
Grazing 15°x75°, Wall Washer: internal optical system made of a primary cylindrical lens in PMMA, a high reflectance anodised aluminium reflector and a holographic filter.
Flood 60°x60°, Flood 75°x75°: cellular optic made of PMMA lenses and polished black anti-reflective polycarbonate screens.
Opal: internal optical system made of a reflector in white painted aluminium and a opal diffusive filter.

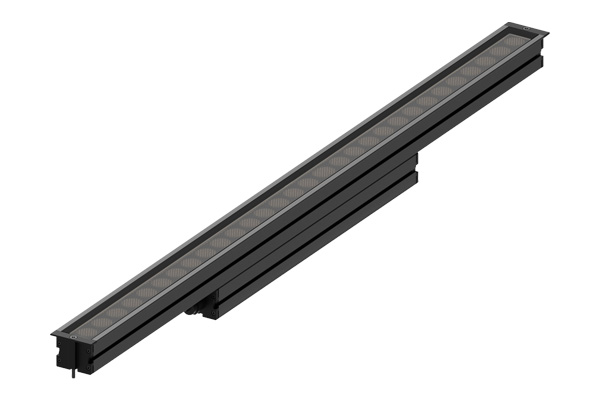

Comfort versions available with integrated optical accessory.
Grazing 10°x10°, Flood 30°x30°: aluminum honeycomb grid, matte black finish.
Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Grazing 15°x75°: longitudinal anti-glare screen in black painted steel.
Wall Washer: longitudinal anti-glare screen (with inclined louvers) in black painted steel.Installation
To be completed with an anodised aluminium insertion box.
Continuous in-line installation version available.Power Supply
Integrated driver available as ON-OFF and DALI2 version (positioned below the optical body).
Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body).Notes
Casambi control system available as an accessory (only for DALI2 versions).
110-277Vac version available on request.
All versions meet the drive-over and walk-over requirements of EN 60598-2-13.
IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h).
IP69: IEC/EN 60529 standard compliant.
