Concept

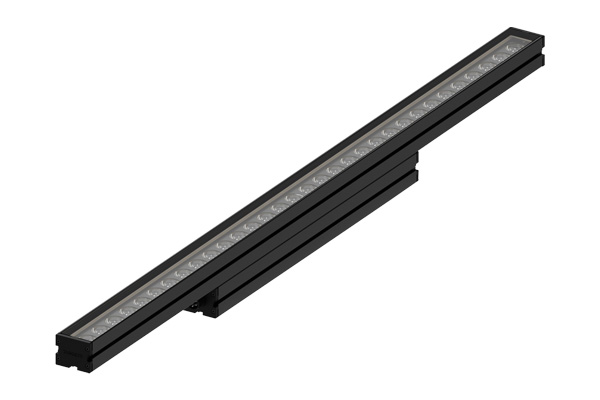

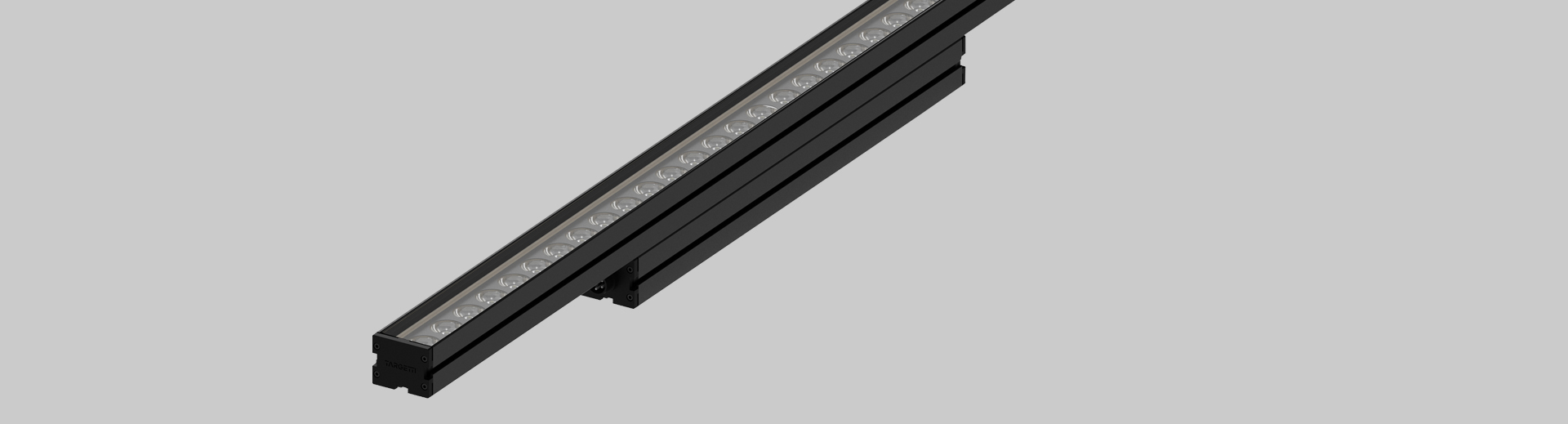

Adjustable linear LED projector.Material
Extruded anodised aluminium 15µ body.
Extra clear 5mm thick glass flat screen.
The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.

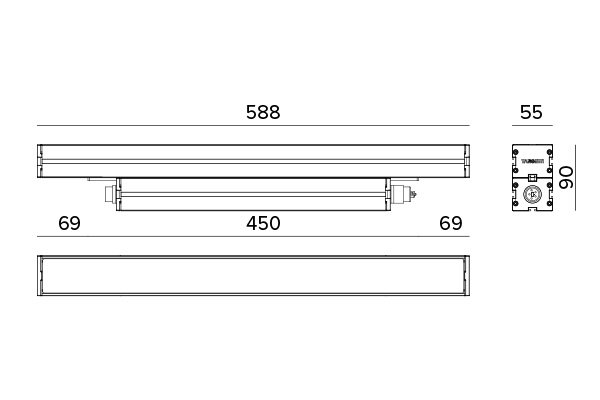

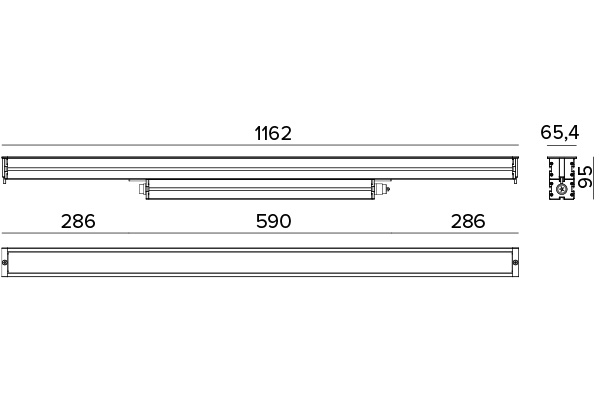

Available in 3 different lengths: 600/900/1200mm.Source
High Power High Efficiency Ra80 linear LED board (Grazing 10°x10°, Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Flood 30°x30°)/Mid Power (Grazing 15°x75°, Flood 60°x60°, Flood 75°x75°, Wall Washer, Opal).Optic
Internal optical unit varies according to the emission.
Grazing 10°x10°, Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Flood 30°x30°: optics made of optical grade PMMA TIR lenses and a holographic filter.
Grazing 15°x75°, Wall Washer: internal optical system made of a primary cylindrical lens in PMMA, a high reflectance anodised aluminium reflector and a holographic filter.
Flood 60°x60°, Flood 75°x75°: cellular optic made of PMMA lenses and polished black anti-reflective polycarbonate screens.
Opal: internal optical system made of a reflector in white painted aluminium and a opal diffusive filter.

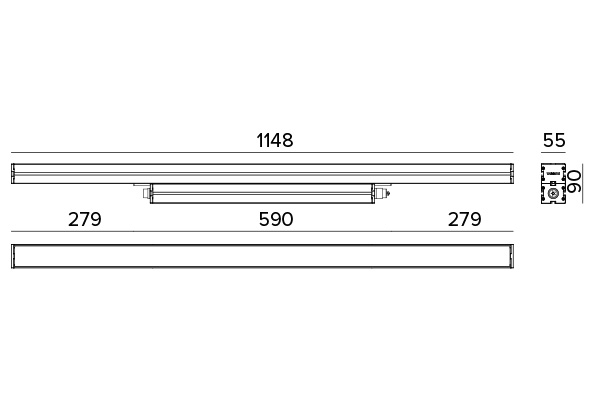

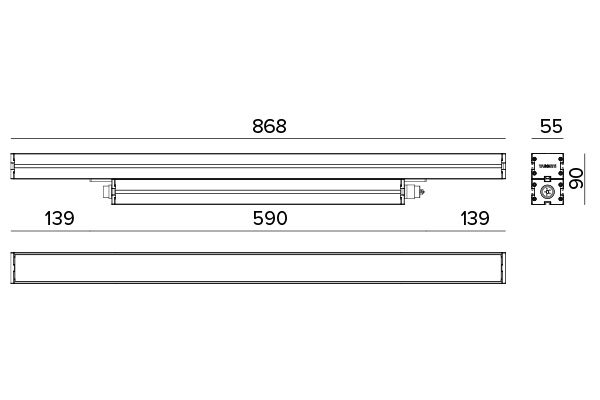

Comfort versions available with integrated optical accessory.
Grazing 10°x10°, Flood 30°x30°: aluminum honeycomb grid, matte black finish.
Grazing 10°x30°, Grazing 10°x60°, Grazing 10°x120°, Grazing 15°x75°: longitudinal anti-glare screen in black painted steel.
Wall Washer: longitudinal anti-glare screen (with inclined louvers) in black painted steel.Installation
To be completed with powder coated stainless steel fixed or adjustable brackets (available in different lengths).Power Supply
Integrated driver available as ON-OFF and DALI2 version (positioned below the optical body).
Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body).Notes
Casambi control system available as an accessory (only for DALI2 versions).
110-277Vac version available on request.
