ZEDGE Pro
Concept

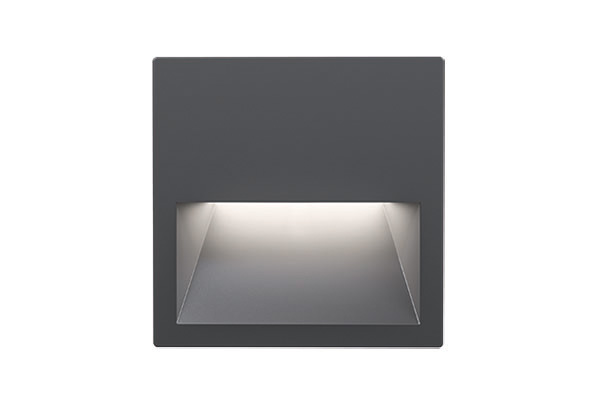

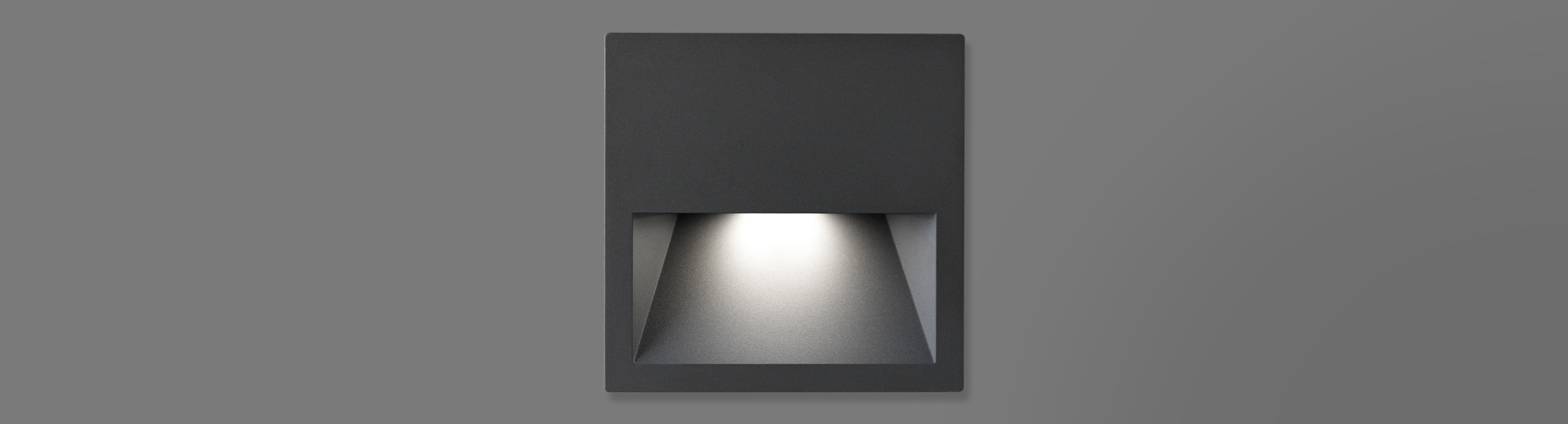

Recessed wall mounted LED fixture.
Material
The body of the fixture and the external frame are made of powder coated die-cast anodised aluminium.
Source
2 high efficiency Ra80 LED Chip on Board.
Ra90 on request.
Optic
The internal optical system is composed of 2 metallised polycarbonate reflectors coupled to two high reflectance anodised aluminium reflectors and holographic filters.
Louver screen in silk-screen printed extra-clear glass.
Available in three different versions: DEEP - deep beam, WIDE - wide beam and ADJUSTABLE - that allows to change from one beam to the other in a uniform way by adjusting the 2 optical systems.
Installation
To be completed with a special nylon outer casing fitted for parallel connection.
Power Supply
Complete with an electronic/dimmable DALI power supply.
EL version: pre-wired with a 1m H07RN-F (2x1.5mm²) cable.
DALI versions: pre-wired with a 1m H07RN-F (4x1mm²) cable.
Casambi control system available as an accessory (only for DALI versions).
Notes
Designed in collaboration with Gensler.
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
For more information
about ZEDGE Pro
Reset selections
ZEDGE Pro
2.5
IP66
IK10
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version

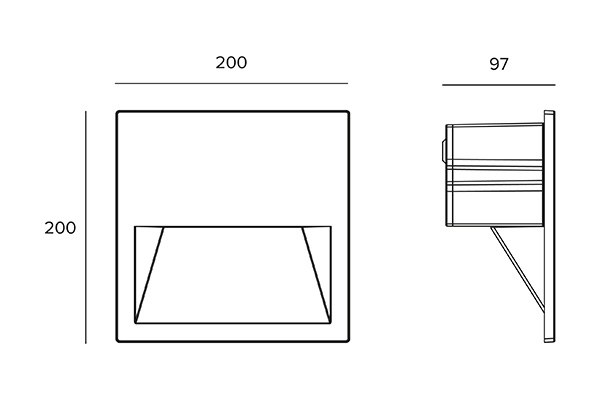

Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

2700K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
DEEP

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

2700K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

2700K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
WIDE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

2700K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

2700K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3000K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

3500K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 2
IP66

IK10
YES

LED

4000K

13W
80

FLOOR WASHER

Ferrite
ADJUSTABLE

220-240Vac 50/60Hz
DALI
YES
CLASS 2
IP66

IK10
YES

Code
1E3192EL
1E3192DA
1E3195EL
1E3195DA
1E3760EL
1E3760DA
1E3198EL
1E3198DA
1E3201EL
1E3201DA
1E3204EL
1E3204DA
1E3761EL
1E3761DA
1E3207EL
1E3207DA
1E3210EL
1E3210DA
1E3213EL
1E3213DA
1E3762EL
1E3762DA
1E3216EL
1E3216DA
