Concept

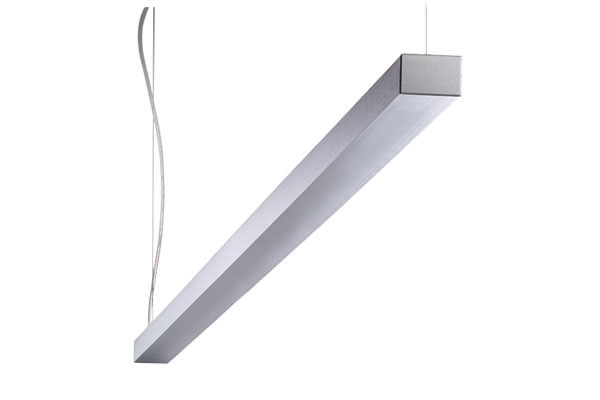

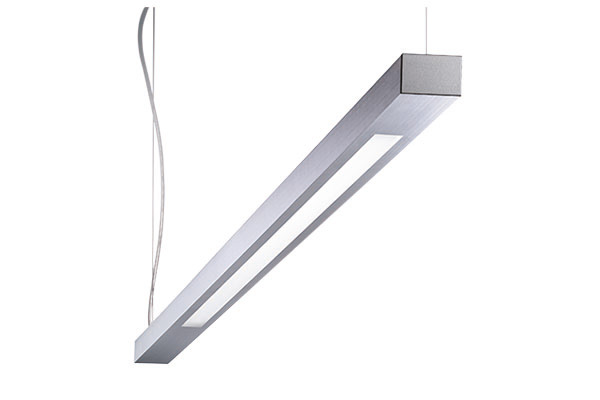

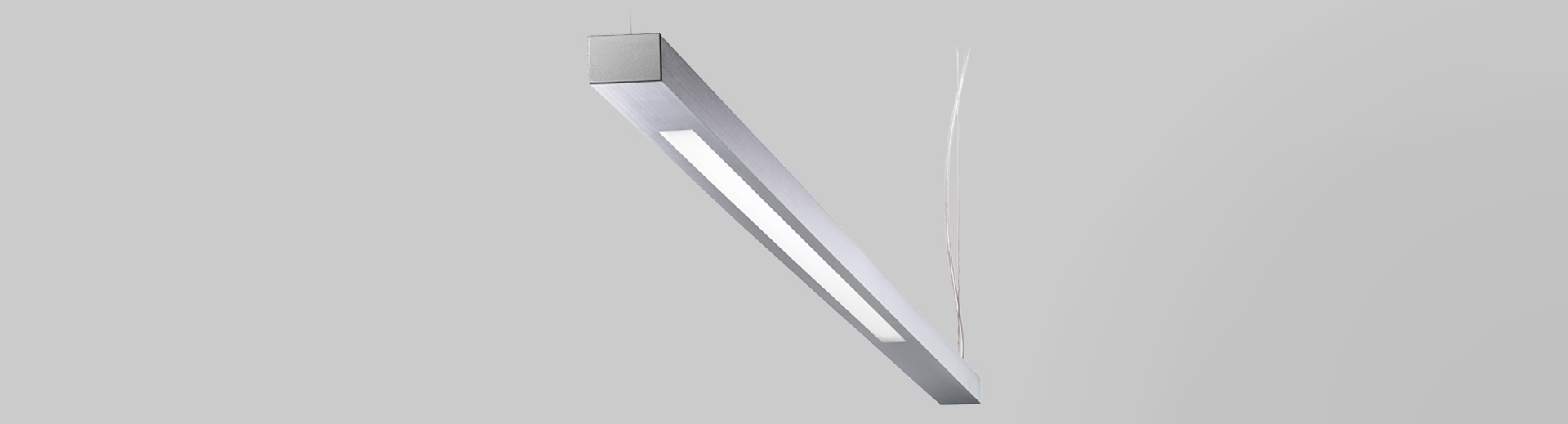

Indirect or direct/indirect modular suspension for LED sources.
Material
Extruded anodised aluminium body
Polycarbonate lateral end caps.
Transparent polycarbonate upper safety screen.
Ribbed, extruded opal polycarbonate lower diffusive screen.
Source
Linear Low Power High Efficiency LED board.
Ra90 on request.
Installation
Steel suspension cables (L=2000mm) with micrometric Auto Block-System ABS.

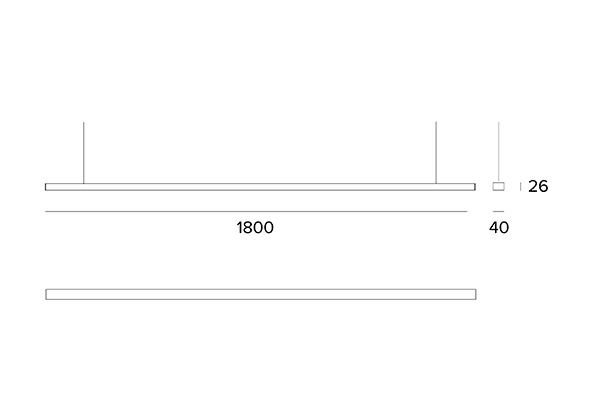

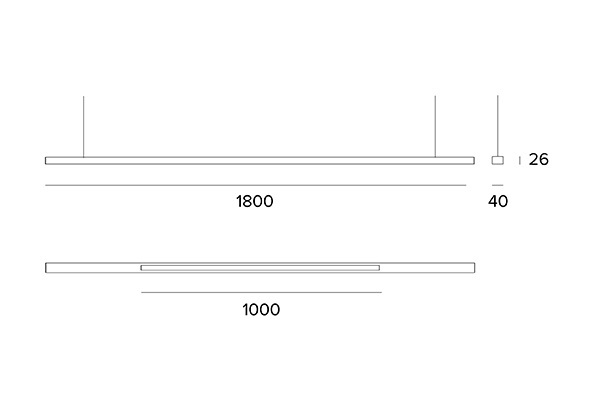

The 1800 mm length modules can be installed in a linear or 90° system configuration using specific accessories.
Power Supply
Integrated electronic power supply.
Notes
To be completed with a feeding cable, code 1V7523 or 1V7213.
In system like installations the quantity of feeding cables to be ordered depends on how many separate modules are used.
Design Daniel Bernard.
