Concept
Recessed professional projector with a fixed or adjustable optical unit.Material
Die-cast aluminium body with 2 layers of protection: cataphoresis and black paint.
Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a natural, eclipse black or copper bronze finish.
Extra-clear or anti-slip, for public pedestrian areas, protective glass.Source
High efficiency Chip on Board LED.
Available in 2200K (Ra90) and 2700K, 3000K, 4000K (Ra80) colour temperatures.
3500K on request.
RGBW versions: High Power RGBW LED (cluster).Optic
Zoom versions: optical system made of a double optical grade PMMA lens and a holographic diffusing filter for continuous adjustment of the beam angle (from Spot to Medium Wide Flood).
Versions with fixed beam angle: optical grade PMMA lens and holographic diffusing filter.
Available with optics Narrow Spot, Spot, Flood and Medium Wide Flood.
Wall Washer version: optical grade PMMA lens, holographic diffusing filter and half-moon black shutter.
Opal version: internal optical system made of a MC-PET high reflectance white reflector and double holographic diffusive filter.
Available versions with integrated honeycomb anti-glare grid and Oval versions with integrated holographic filter for elliptical light emission.

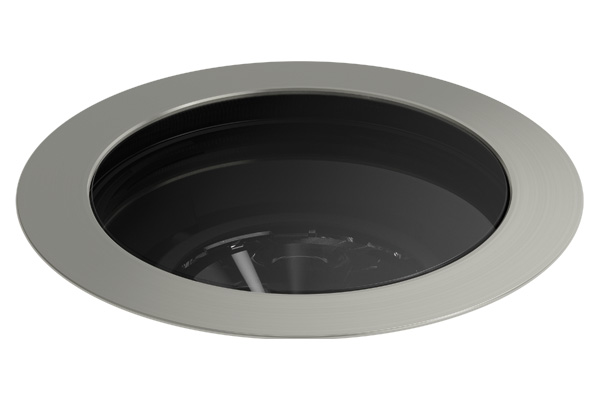

Adjustable versions: adjustability of the optical unit up to 20° on the vertical plane.
Tilting of the optical unit and adjustment of the beam angle (Zoom optics version) made through external regulations without opening the product.Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately.
Sleeves are available for flush or trim installation.
20kN resistance to static load.
Wall/ceiling installation by the accessory mounting systems.Power Supply
Available 24Vdc or constant current power supply versions.
ON-OFF, DALI2 or DMX (RGBW version) remote driver to be ordered separately.
Precabled with 1,5m 2x0,5mm² cable.
Casambi control system available via accessory (for products with DALI2 driver only).Notes
The photometries of the RGBW versions show the maximum emission values of fixtures.
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h).
All the Keplero Quantum 130 versions meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard.
It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
