Concept
Recessed professional projector with a fixed or adjustable optical unit.Material
Aluminium body made by CNC machinining process and treated with black anodizing.

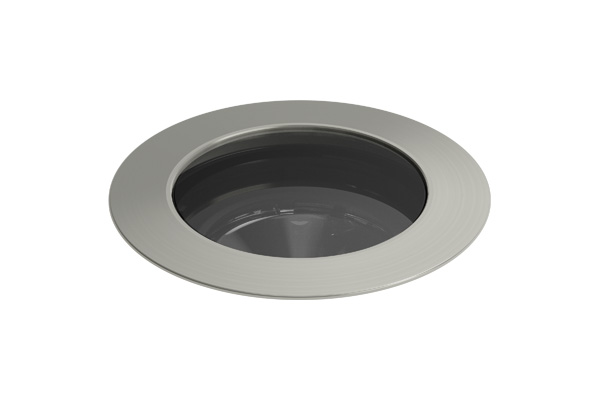

Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a natural, eclipse black or copper bronze finish.

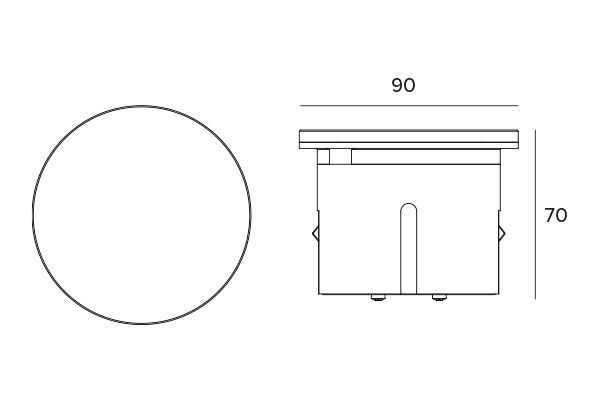

All-glass versions available.
Extra-clear or anti-slip, for public pedestrian areas, protective glass.Source
High efficiency Chip on Board LED.
Opal versions: High Power LED.
Available in 2200K (Ra80/90) and 2700K, 3000K, 4000K (Ra80) colour temperatures.
3500K on request.
RGBW versions: High Power RGBW LED (cluster).Optic
Versions with rotosymmetric light distribution: optical grade PMMA lens and holographic diffusing filter.
Available with Narrow Spot, Spot, Flood and Wide Flood optics.
Wall Washer version: optical grade PMMA lens, holographic diffusing filter and half-moon black shutter.
Opal version: internal optical system made of a MC-PET high reflectance white reflector and double holographic diffusive filter.

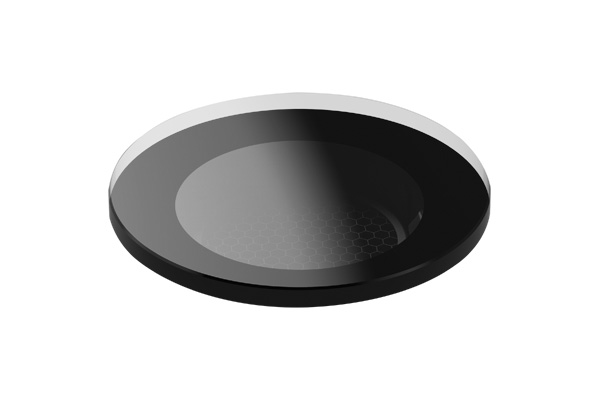

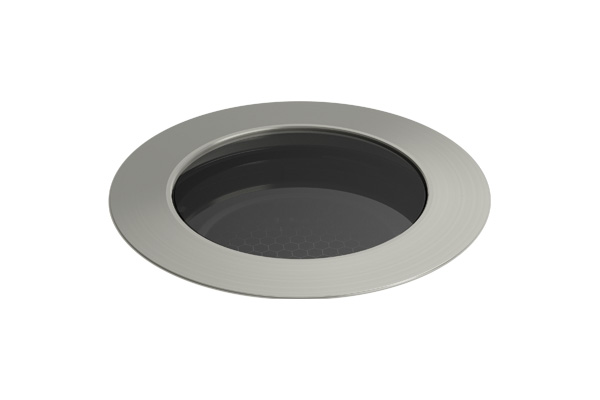

Available versions with integrated honeycomb anti-glare grid and Oval versions with integrated holographic filter for elliptical light emission.

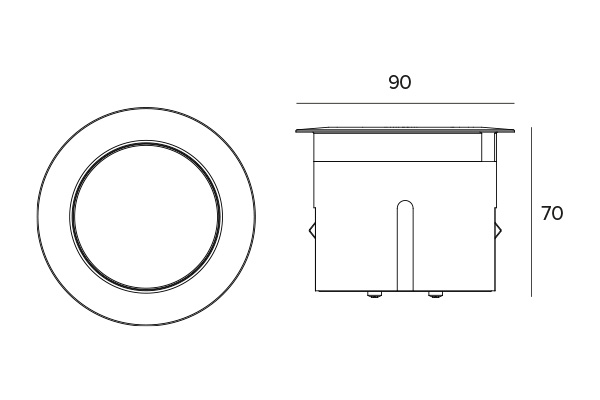

Adjustable versions: adjustability of the optical unit up to 15° on the vertical plane.
Tilting of the optical unit made through external regulation without opening the product.Installation

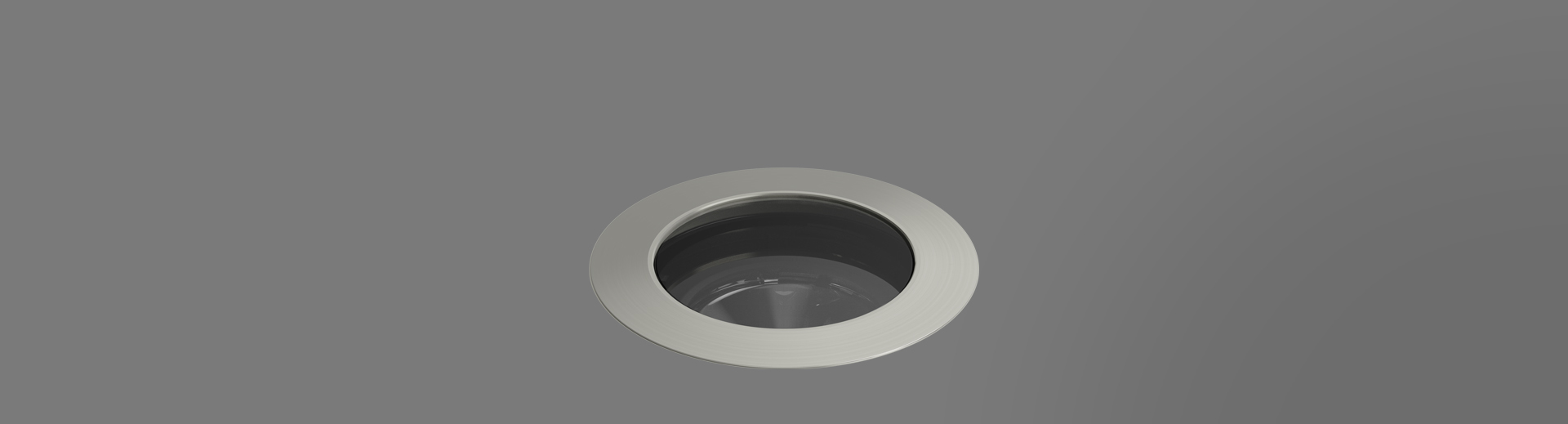

In-ground installation by a reinforced nylon sleeve, to be ordered separately.
Sleeves are available for flush, trim or all-glass flush installation.
20kN resistance to static load.
Wall/ceiling installation by the accessory mounting systems.Power Supply
Available 24Vdc or constant current (RGBW) power supply versions.
ON-OFF, DALI2 or DMX (RGBW version) remote driver to be ordered separately.
Precabled with 1,5m 2x0,5mm² cable.
Casambi control system available via accessory (for products with DALI2 driver only).Notes
The photometries of the RGBW versions show the maximum emission values of fixtures.
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h).
All the Keplero Quantum 90 versions (except all-glass versions which are walkable only) meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard.
Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children.
It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
