Concept
Adjustable linear LED projector.
Material
Extruded anodised aluminium 15µ body.
1.8mm thick polycarbonate removable (to insert accessories) flat screen.
Removable driver box.
The body of the fixture is adjustable and can be installed away from the mounting surface using accessory brackets.
Source
High Power Ra90 linear LED board.
Optic
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter.
Available in three versions: Flood, Grazing and Wall Washer.
Acrylic lenses with an integrated holographic filter for Spot emissions.
Installation
To be completed with stainless steel fixed or adjustable brackets.
Power Supply

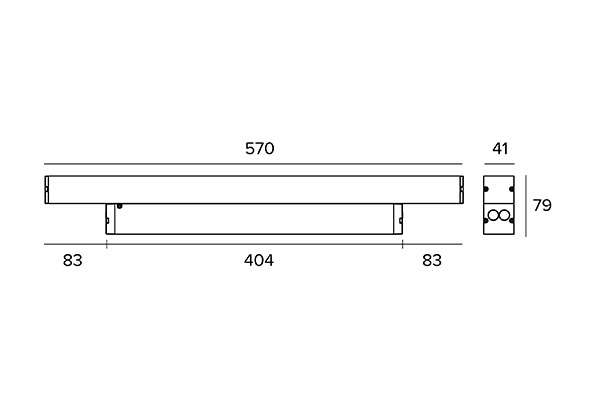

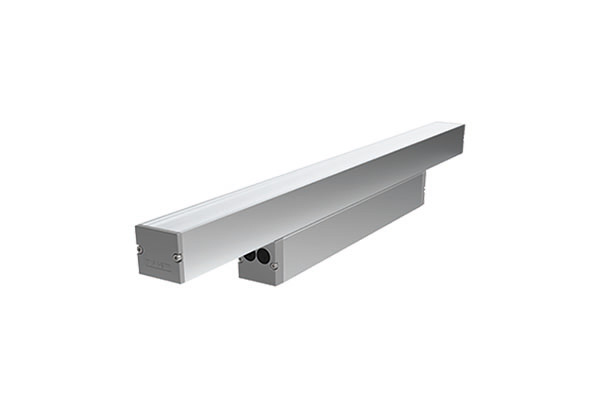

Integrated/removable driver version: available in L 570/850/1130mm versions.
Complete with electronic or DALI power supply, pre-cabled with a 1 metre 3x0.75mm² or 5x0.75mm² cable.
The driver can be removed and placed in another position while remaining connected (cable 0.5m).

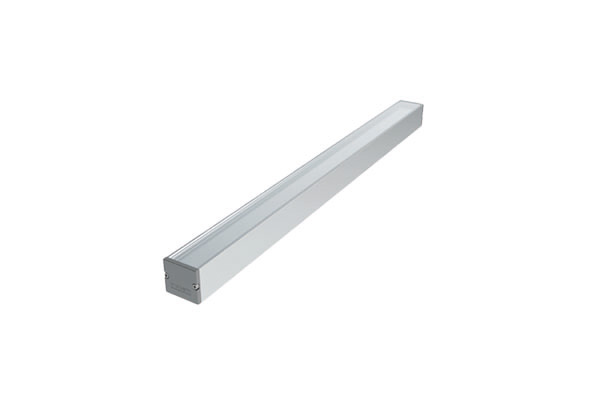

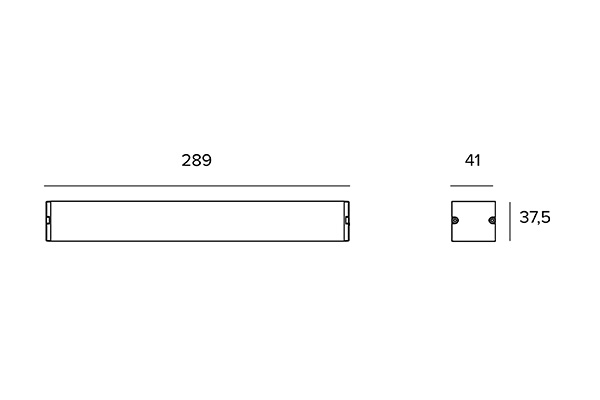

Remote driver version: available in a L 289mm version.
The optical unit is pre-cabled with 0.75 metres of 3x0.75mm² cable.
Electronic or DALI power supply, pre-cabled with 0.75 metres of 3x0.75mm² cable to connect to the optical unit and a 3x0.75mm² or 5X0.75mm² cable to connect to the electronic or DALI power supply.
To be completed with an electronic or DALI driver.
Notes
Anti-glare grill available for all versions.
Casambi control system available as an accessory (only for DALI versions).
Remote driver version: values relating to the power of the fixture do not take into account the absorption of the accessory driver. This value depends on the choice of driver.
