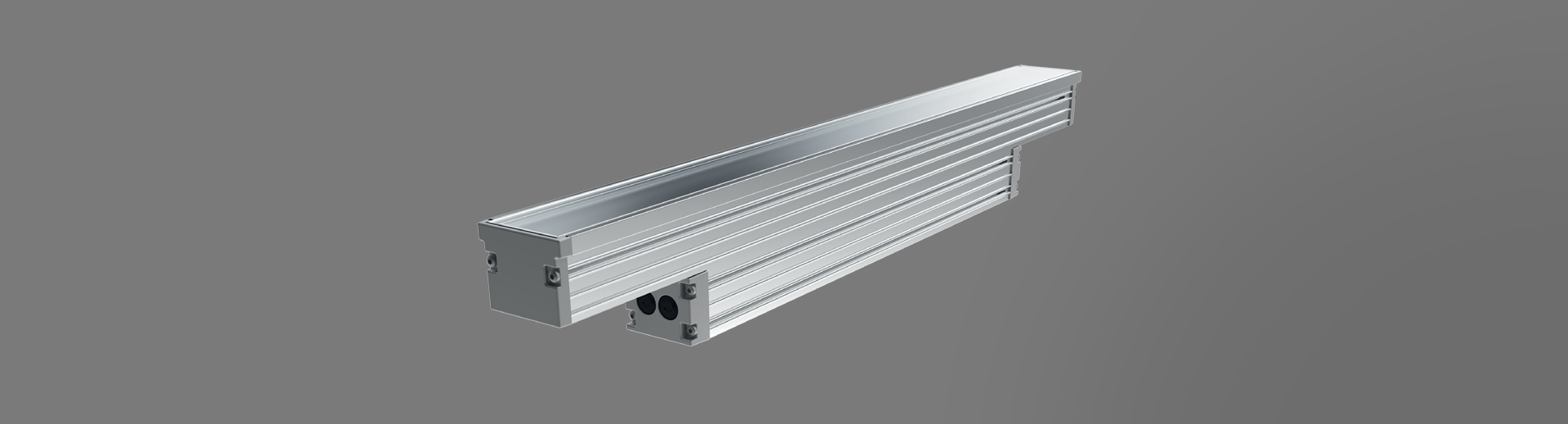

JEDI COMPACT Outdoor Projector
HOME>Products>Outdoor>Projectors>JEDI COMPACT
Concept
Adjustable linear LED projector.
Material
Extruded anodised aluminium 15µ body.
Extra clear 5mm thick glass flat screen.
The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Source
High Power High Efficiency Ra80 linear LED board.
Ra90 on request.
Optic
Internal optical system composed of a primary cylindrical glass lens, a high reflectance anodised aluminium reflector and an integrated holographic filter.
Available in three versions: Flood, Grazing and Wall Washer.
Acrylic lenses with an integrated holographic filter for Spot emissions.
Installation
To be completed with stainless steel adjustable brackets.
Power Supply

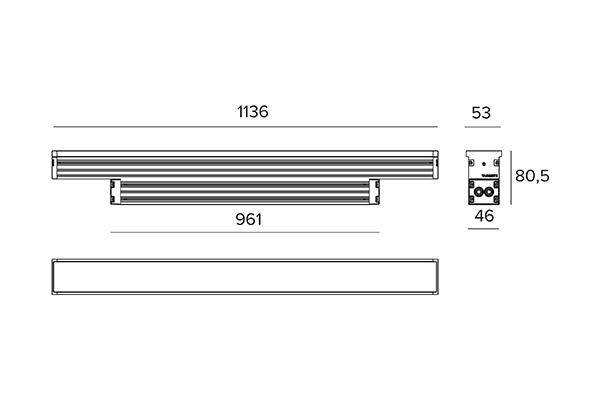

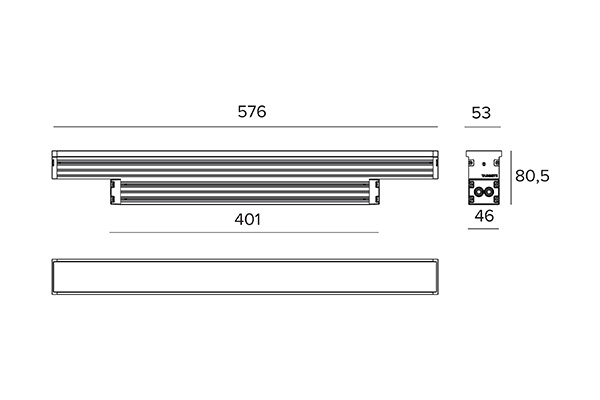

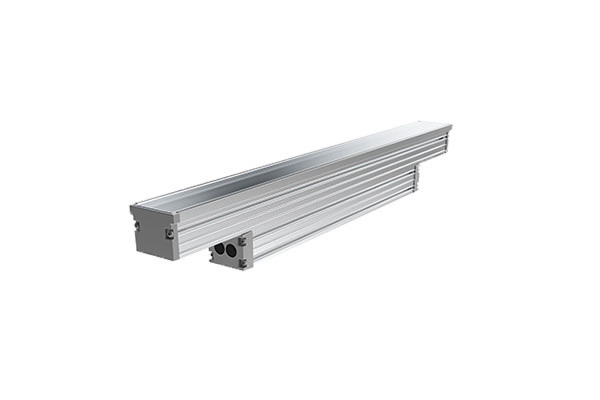

Integrated driver version: available in L576/856/1136mm versions.
Complete with an electronic or DALI power supply.
Available in a version with an integrated Louver effect grill.
Pre-cabled with a 1 metre 3x1mm² or 5x1mm²H07RN-F cable.
Remote driver version: available in L 312.5/593.5/873.5/1153.5mm versions.
Available in a version with an integrated Louver effect grill.
The optical unit is pre-cabled with a 1 metre 3x1mm² H07RN-F cable.
Electronic or DALI power supply, pre-cabled with a 1 metre 3x1mm² H07RN-F cable to connect to the optical unit and a 3x1mm² or 5x1mm² cable to connect to the electronic or DALI power supply.
Casambi control system available as an accessory (only for DALI versions).
Notes
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
110-277Vac version available on request.
Remote driver version: values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
For more information
about JEDI COMPACT Outdoor Projector
Reset selections

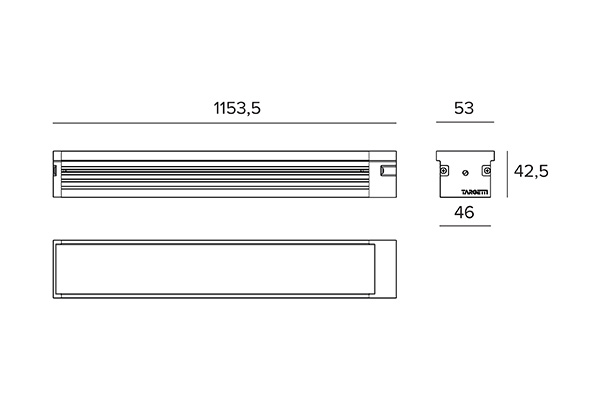

JEDI COMPACT Outdoor Projector - Remote driver - L. 1153,5mm
3.2
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

46W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

46W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

46W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

46W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3819
1E3820
1E3821
1E3822
1E3256
1E3257
1E3258
1E3259
1E3260
1E3261
1E3262
1E3263
1E3264
1E3265
1E3266
1E3267
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector - Remote driver - L. 873,5mm
2.5
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

35W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

35W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

35W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

35W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3815
1E3816
1E3817
1E3818
1E3244
1E3245
1E3246
1E3247
1E3248
1E3249
1E3250
1E3251
1E3252
1E3253
1E3254
1E3255
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.

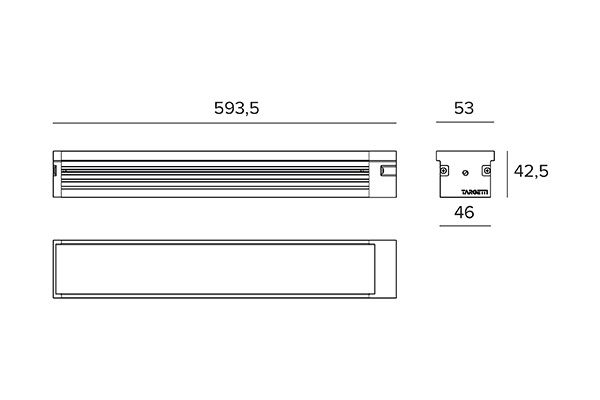

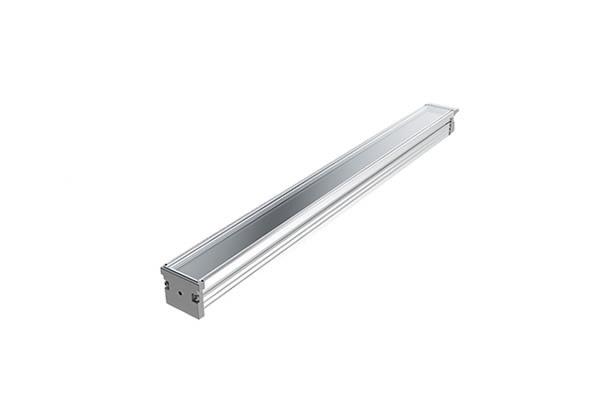

JEDI COMPACT Outdoor Projector - Remote driver - L. 593,5mm
1.65
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

23W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

23W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

23W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

23W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3811
1E3812
1E3813
1E3814
1E3232
1E3233
1E3234
1E3235
1E3236
1E3237
1E3238
1E3239
1E3240
1E3241
1E3242
1E3243
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector - Remote driver - L. 312,5mm
0.95
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

12W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
SP
LENS

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

12W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
FL
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

12W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
GRZ
HYBRID

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

12W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
WW
WALL WASHER

Aluminium
REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3807
1E3808
1E3809
1E3810
1E3220
1E3221
1E3222
1E3223
1E3224
1E3225
1E3226
1E3227
1E3228
1E3229
1E3230
1E3231
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector Louvre - Remote driver - L. 1153,5mm
3.3
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

48W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=1153,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3343
1E3344
1E3345
1E3346
1E3347
1E3348
1E3349
1E3350
1E3351
1E3352
1E3353
1E3354
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector Louvre - Remote driver - L. 873,5mm
2.6
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

36W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=873,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3331
1E3332
1E3333
1E3334
1E3335
1E3336
1E3337
1E3338
1E3339
1E3340
1E3341
1E3342
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector Louvre - Remote driver - L. 593,5mm
1.7
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

24W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=593,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3319
1E3320
1E3321
1E3322
1E3323
1E3324
1E3325
1E3326
1E3327
1E3328
1E3329
1E3330
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector Louvre - Remote driver - L. 312,5mm
1
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

12W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
FL
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

12W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
GRZ
HYBRID

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

12W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

12W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

12W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

12W
80
WW
WALL WASHER

Aluminium
LOUVRE - REMOTE DRIVER
L=312,5mm
500mA

NO
CLASS 1
IP66,IP67

IK08
YES

Code
1E3307
1E3308
1E3309
1E3310
1E3311
1E3312
1E3313
1E3314
1E3315
1E3316
1E3317
1E3318
Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver.
JEDI COMPACT Outdoor Projector - Integrated driver - L. 1136mm
4.5
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

46W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3831EL
1E3832EL
1E3833EL
1E3834EL
1E3831DA
1E3832DA
1E3833DA
1E3834DA
1E3292EL
1E3293EL
1E3294EL
1E3295EL
1E3292DA
1E3293DA
1E3294DA
1E3295DA
1E3296EL
1E3297EL
1E3298EL
1E3299EL
1E3296DA
1E3297DA
1E3298DA
1E3299DA
1E3300EL
1E3301EL
1E3302EL
1E3303EL
1E3300DA
1E3301DA
1E3302DA
1E3303DA
JEDI COMPACT Outdoor Projector - Integrated driver - L. 856mm
3.6
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

35W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3827EL
1E3828EL
1E3829EL
1E3830EL
1E3827DA
1E3828DA
1E3829DA
1E3830DA
1E3280EL
1E3281EL
1E3282EL
1E3283EL
1E3280DA
1E3281DA
1E3282DA
1E3283DA
1E3284EL
1E3285EL
1E3286EL
1E3287EL
1E3284DA
1E3285DA
1E3286DA
1E3287DA
1E3288EL
1E3289EL
1E3290EL
1E3291EL
1E3288DA
1E3289DA
1E3290DA
1E3291DA
JEDI COMPACT Outdoor Projector - Integrated driver - L. 576mm
2.6
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

23W
80
SP
LENS

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3823EL
1E3824EL
1E3825EL
1E3826EL
1E3823DA
1E3824DA
1E3825DA
1E3826DA
1E3268EL
1E3269EL
1E3270EL
1E3271EL
1E3268DA
1E3269DA
1E3270DA
1E3271DA
1E3272EL
1E3273EL
1E3274EL
1E3275EL
1E3272DA
1E3273DA
1E3274DA
1E3275DA
1E3276EL
1E3277EL
1E3278EL
1E3279EL
1E3276DA
1E3277DA
1E3278DA
1E3279DA
JEDI COMPACT Outdoor Projector Louvre - Integrated driver - L. 1136mm
4.6
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

48W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=1136mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3379EL
1E3380EL
1E3381EL
1E3382EL
1E3379DA
1E3380DA
1E3381DA
1E3382DA
1E3383EL
1E3384EL
1E3385EL
1E3386EL
1E3383DA
1E3384DA
1E3385DA
1E3386DA
1E3387EL
1E3388EL
1E3389EL
1E3390EL
1E3387DA
1E3388DA
1E3389DA
1E3390DA
JEDI COMPACT Outdoor Projector Louvre - Integrated driver - L. 856mm
3
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

36W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=856mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3367EL
1E3368EL
1E3369EL
1E3370EL
1E3367DA
1E3368DA
1E3369DA
1E3370DA
1E3371EL
1E3372EL
1E3373EL
1E3374EL
1E3371DA
1E3372DA
1E3373DA
1E3374DA
1E3375EL
1E3376EL
1E3377EL
1E3378EL
1E3375DA
1E3376DA
1E3377DA
1E3378DA
JEDI COMPACT Outdoor Projector Louvre - Integrated driver - L. 576mm
2.2
IP66
IP67
IK08
1m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED

2700K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
FL
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
GRZ
HYBRID

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP66,IP67

IK08
YES

LED

2700K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

3500K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

LED

4000K

24W
80
WW
WALL WASHER

Aluminium
LOUVRE - INTEGRATED DRIVER
L=576mm
220-240Vac 50/60Hz
DALI
YES
CLASS 1
IP66,IP67

IK08
YES

Code
1E3355EL
1E3356EL
1E3357EL
1E3358EL
1E3355DA
1E3356DA
1E3357DA
1E3358DA
1E3359EL
1E3360EL
1E3361EL
1E3362EL
1E3359DA
1E3360DA
1E3361DA
1E3362DA
1E3363EL
1E3364EL
1E3365EL
1E3366EL
1E3363DA
1E3364DA
1E3365DA
1E3366DA
Market
Language
International
USA
International / en
Company.
Targetti Sankey S.r.l.
Single-member private limited liability company subject to management and control of 3F Filippi S.p.A.
Via Pratese, 164
50145 Firenze - Italy
Tel: +39 055 37911
Fax: +39 055 3791266
Email: targetti@targetti.com
CCIAA Firenze
Share Capital: € 500.000,00
VAT N. (IT): 01537660480
R.E.A: FI-275656
Group.
Social.
SHARE
QUICK CONTACT
LOGOUT
Cookie information
This website makes use of technical cookies, including third-party cookies, to improve your browsing experience.
For information about how they work, to disable them from your browser or to refuse consent to certain cookies, read the privacy policy.
By closing this banner, scrolling down this page or clicking on any of its elements, you consent to the use of cookies in compliance with Articles 122 (paragraph 1) and 154 (paragraph 1), letter h, of the Privacy Code.
