Lighting Systems
Oz
Filters
Filters
Colour
Dimension
Version
CCT
CRI
Optic
Type of optic
Fixture Power
W
W
Fixture flux
lm
lm
Power supply

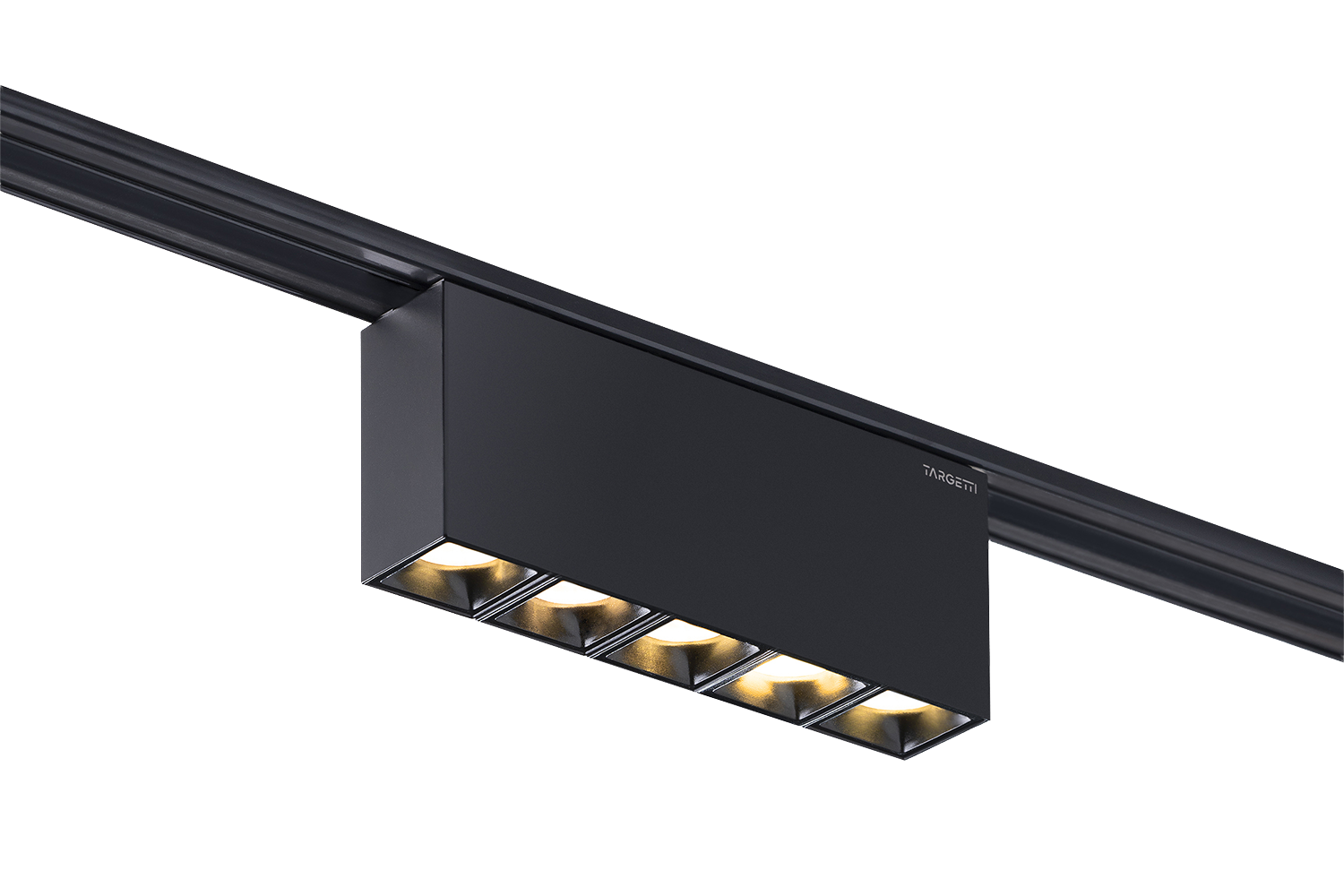

Oz Lighting module - Multiple - Small 5x - 25x125mm
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 2T0067 | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc |  |
Overview |
| 2T0068 | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0069 | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0070 | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0079 | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc |  |
Overview |
| 2T0080 | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0081 | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0082 | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0067CA | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc | |
Overview |
| 2T0068CA | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0069CA | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0070CA | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0079CA | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc | |
Overview |
| 2T0080CA | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0081CA | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0082CA | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0067DD | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc | |
Overview |
| 2T0068DD | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0069DD | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0070DD | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0079DD | 2700K 90 | SP 11° | 8.3W 484lm | 48Vdc | |
Overview |
| 2T0080DD | 3000K 90 | SP 11° | 8.3W 510lm | 48Vdc | |
Overview |
| 2T0081DD | 3500K 90 | SP 11° | 8.3W 526lm | 48Vdc | |
Overview |
| 2T0082DD | 4000K 90 | SP 11° | 8.3W 549lm | 48Vdc | |
Overview |
| 2T0071 | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0072 | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0073 | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0074 | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0083 | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0084 | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0085 | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0086 | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0071CA | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0072CA | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0073CA | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0074CA | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0083CA | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0084CA | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0085CA | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0086CA | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0071DD | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0072DD | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0073DD | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0074DD | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0083DD | 2700K 90 | FL 28° | 8.3W 465lm | 48Vdc | |
Overview |
| 2T0084DD | 3000K 90 | FL 28° | 8.3W 490lm | 48Vdc | |
Overview |
| 2T0085DD | 3500K 90 | FL 28° | 8.3W 505lm | 48Vdc | |
Overview |
| 2T0086DD | 4000K 90 | FL 28° | 8.3W 527lm | 48Vdc | |
Overview |
| 2T0075 | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0076 | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0077 | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0078 | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
| 2T0087 | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0088 | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0089 | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0090 | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
| 2T0075CA | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0076CA | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0077CA | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0078CA | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
| 2T0087CA | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0088CA | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0089CA | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0090CA | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
| 2T0075DD | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0076DD | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0077DD | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0078DD | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
| 2T0087DD | 2700K 90 | MWFL 41° | 8.3W 448lm | 48Vdc | |
Overview |
| 2T0088DD | 3000K 90 | MWFL 41° | 8.3W 472lm | 48Vdc | |
Overview |
| 2T0089DD | 3500K 90 | MWFL 41° | 8.3W 487lm | 48Vdc | |
Overview |
| 2T0090DD | 4000K 90 | MWFL 41° | 8.3W 508lm | 48Vdc | |
Overview |
62

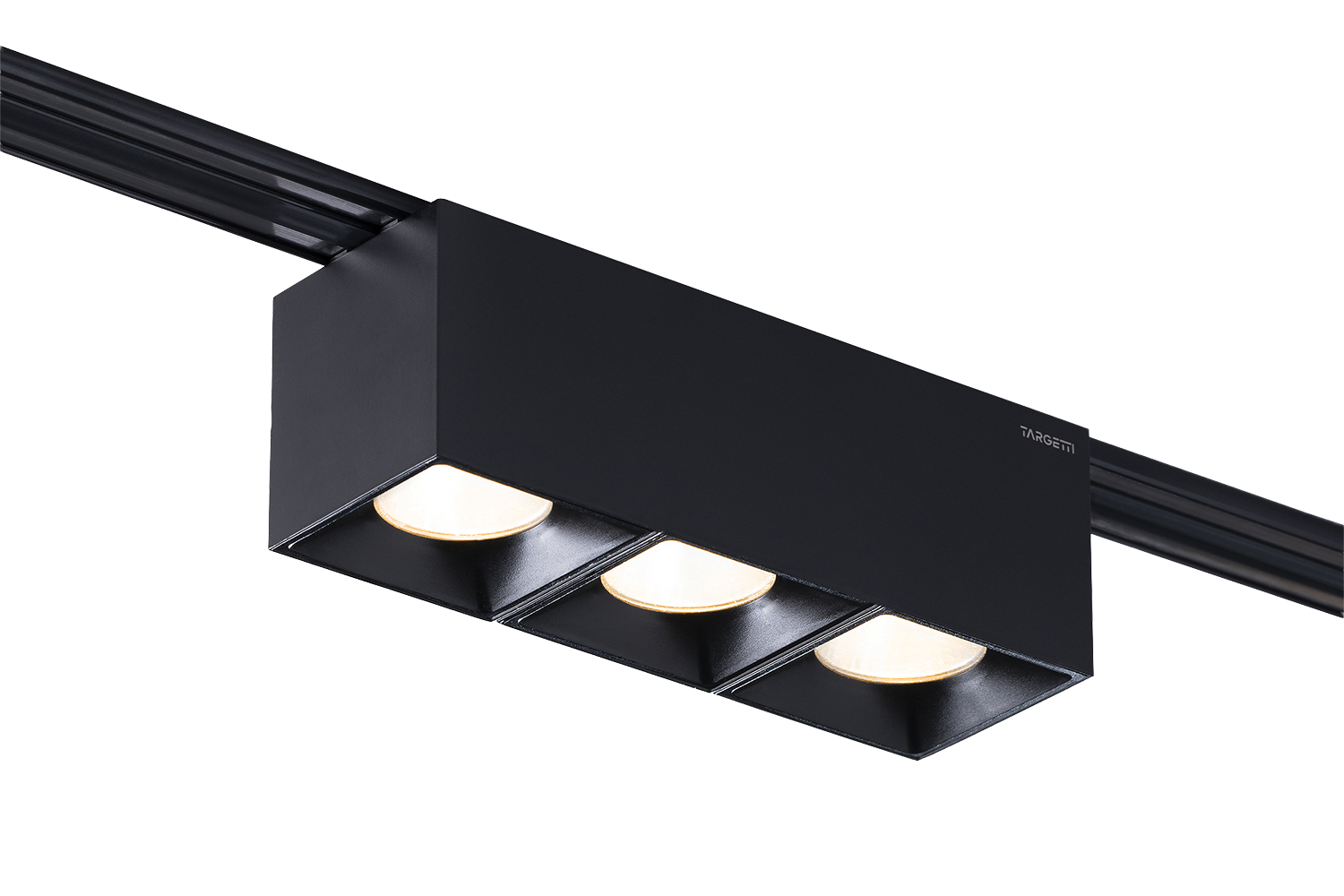

Oz Lighting module - Multiple - Large 3x - 50x150mm
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 2T0091 | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0092 | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0093 | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0094 | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0103 | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0104 | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0105 | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0106 | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0091CA | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0092CA | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0093CA | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0094CA | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0103CA | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0104CA | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0105CA | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0106CA | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0091DD | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0092DD | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0093DD | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0094DD | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0103DD | 2700K 90 | SP 19° | 18.8W 1677lm | 48Vdc | |
Overview |
| 2T0104DD | 3000K 90 | SP 19° | 18.8W 1770lm | 48Vdc | |
Overview |
| 2T0105DD | 3500K 90 | SP 19° | 18.8W 1851lm | 48Vdc | |
Overview |
| 2T0106DD | 4000K 90 | SP 19° | 18.8W 1890lm | 48Vdc | |
Overview |
| 2T0095 | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0096 | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0097 | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0098 | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0107 | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0108 | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0109 | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0110 | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0095CA | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0096CA | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0097CA | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0098CA | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0107CA | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0108CA | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0109CA | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0110CA | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0095DD | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0096DD | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0097DD | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0098DD | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0107DD | 2700K 90 | FL 27° | 17.8W 1676lm | 48Vdc | |
Overview |
| 2T0108DD | 3000K 90 | FL 27° | 17.8W 1787lm | 48Vdc | |
Overview |
| 2T0109DD | 3500K 90 | FL 27° | 17.8W 1858lm | 48Vdc | |
Overview |
| 2T0110DD | 4000K 90 | FL 27° | 17.8W 1932lm | 48Vdc | |
Overview |
| 2T0099 | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0100 | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0101 | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0102 | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
| 2T0111 | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0112 | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0113 | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0114 | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
| 2T0099CA | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0100CA | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0101CA | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0102CA | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
| 2T0111CA | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0112CA | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0113CA | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0114CA | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
| 2T0099DD | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0100DD | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0101DD | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0102DD | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
| 2T0111DD | 2700K 90 | MWFL 37° | 17.8W 1847lm | 48Vdc | |
Overview |
| 2T0112DD | 3000K 90 | MWFL 37° | 17.8W 1969lm | 48Vdc | |
Overview |
| 2T0113DD | 3500K 90 | MWFL 37° | 17.8W 2047lm | 48Vdc | |
Overview |
| 2T0114DD | 4000K 90 | MWFL 37° | 17.8W 2128lm | 48Vdc | |
Overview |
62
